ADP1712AUJZ-0.8-R7 Low Dropout Linear Regulator

The ADP1712AUJZ-0.8-R7 is a high-performance low dropout linear regulator (LDO) from Analog Devices Inc., designed to provide a stable and precise voltage supply for a wide array of electronic applications. This LDO regulator is notable for its compact package, high accuracy, and low quiescent current, making it an ideal choice for battery-powered devices, portable equipment, and other applications where power efficiency is critical.

Key Features

• Output Voltage: The device provides a fixed output voltage of 0.8V, which is suitable for low-voltage digital circuits and helps in power management in complex systems.
• High Accuracy: With excellent line and load regulation, the ADP1712AUJZ-0.8-R7 ensures a consistent output even under varying input voltages and load conditions.
• Low Quiescent Current: The LDO's low Iq of typically 23 µA (no load) and 1 µA in shutdown mode contributes to the extended battery life of portable devices.
• Thermal Protection: It features thermal overload protection, which safeguards the device and the system during conditions of excessive power dissipation.
• Current Limiting: Built-in current limiting prevents damage to the regulator during fault conditions, such as output short circuits or overloading.

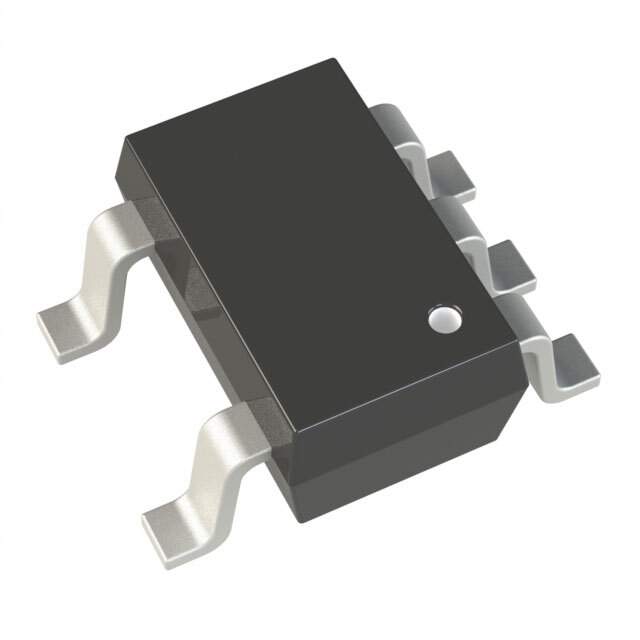

• Small Footprint: Housed in a compact TSOT-5 package, the ADP1712AUJZ-0.8-R7 saves valuable board space in space-constrained applications.

Applications

• Mobile Phones
• Portable and Battery-Powered Equipment
• Digital Cameras and Audio Devices
• Wireless LAN Devices
• GPS Receivers

The ADP1712AUJZ-0.8-R7 is part of Analog Devices' commitment to providing power management solutions that combine performance with power conservation. Its robust design ensures reliability and longevity, making it a trusted component in the design of sensitive and critical electronic systems.

With its precise voltage regulation, low power consumption, and protection features, the ADP1712AUJZ-0.8-R7 is an excellent choice for designers looking to optimize the power efficiency and performance of their applications.
