Product Overview: ADV7183BBSTZ

The ADV7183BBSTZ from Analog Devices Inc. is a highly integrated, versatile video decoder that is designed to simplify the implementation of video systems in a wide range of applications. This powerful chip can automatically detect and convert standard analog baseband video signals into a digital YCrCb or RGB format, making it an ideal solution for applications such as video surveillance, automotive infotainment systems, video capture, and broadcast equipment.

Key Features

• Multi-Format Support: The ADV7183BBSTZ supports numerous video formats including NTSC, PAL, SECAM, and a variety of others, ensuring compatibility with global video standards.
• High-Quality Video: With its advanced 10-bit ADC and 4H comb filter, the decoder delivers high-quality video output, reducing artifacts and noise to produce a clear and stable image.
• Automatic Format Detection: The device can automatically detect the format of the incoming video signal, simplifying the design process and reducing the need for manual intervention.
• Flexible Outputs: Users can select between various output formats such as ITU-R BT.656 or analog RGB, accommodating different types of displays and interfaces.
• Low Power Consumption: Designed with power efficiency in mind, the ADV7183BBSTZ is suitable for portable and battery-operated equipment.

Technical Specifications

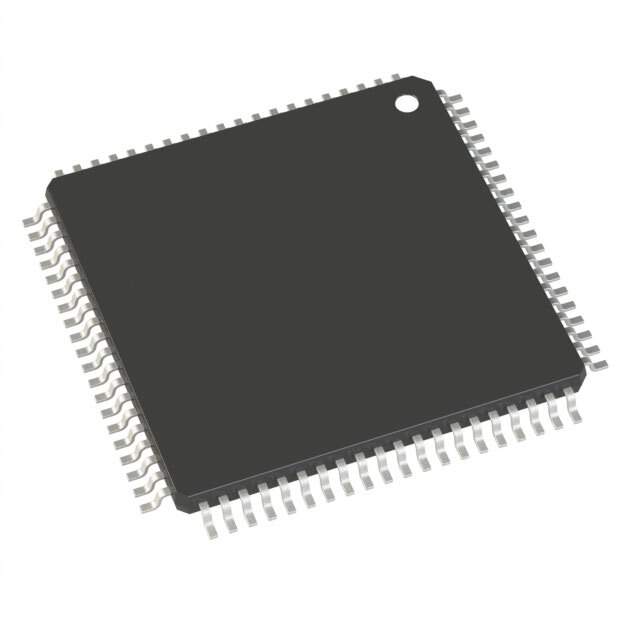

• Package: 80-LQFP (Low Profile Quad Flat Pack)
• Operating Temperature Range: -40°C to +85°C
• Supply Voltage: 1.8V for digital core, 3.3V for analog processing
• Integrated PLL (Phase-Locked Loop) for line-locked clock generation

Applications

• Video Surveillance Systems
• Automotive Infotainment and Rear-View Cameras
• Personal Video Recorders
• Video Conferencing Equipment
• Professional Video Editing and Broadcasting

The ADV7183BBSTZ is available in a space-saving surface-mount package, making it suitable for compact designs. Its robust feature set and ease of integration make it a go-to choice for developers looking to incorporate high-quality video decoding into their products with minimal effort.
