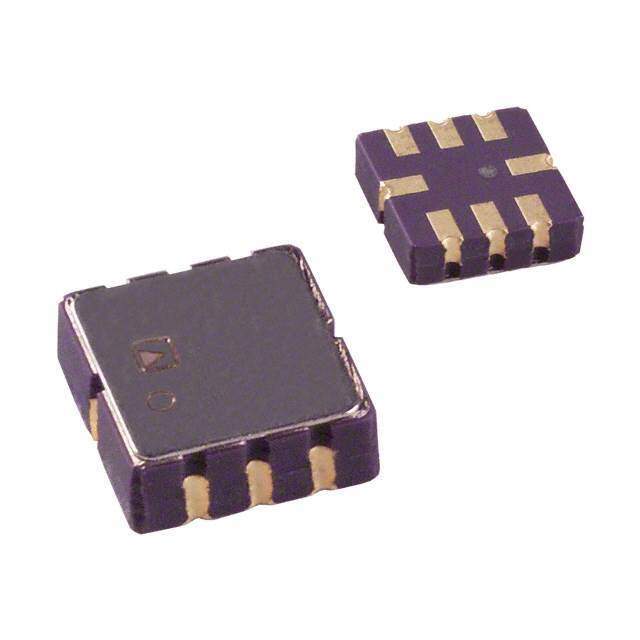

Product Overview: ADR4525DEZ-R7

The ADR4525DEZ-R7 is a high precision, low noise voltage reference from Analog Devices Inc., designed to ensure stability and accuracy for high-performance analog circuits. This remarkable component is part of the ADR45xx series, which has become a staple in applications requiring a stable voltage reference, such as data converters, portable instrumentation, and industrial process control systems.

Key Features

• Precision Series Voltage Reference: The ADR4525DEZ-R7 offers a nominal output voltage of 2.5V, making it ideal for a wide range of applications.
• High Accuracy: With an initial accuracy of ±0.02%, this voltage reference provides highly precise output, ensuring the reliability of the systems it is integrated into.
• Low Temperature Coefficient: It exhibits an excellent temperature coefficient (tempco) as low as 2 ppm/°C over the full temperature range, which means minimal deviation in output voltage with temperature changes.
• Low Noise: At just 1.3 µVp-p of output noise (0.1 Hz to 10 Hz), this component guarantees a clean reference signal, which is crucial for sensitive electronics.
• Long-Term Stability: The ADR4525DEZ-R7 demonstrates superior long-term stability, assuring consistent performance over time.
• Wide Operating Temperature Range: It operates across a broad temperature range from -40°C to +125°C, catering to diverse environmental conditions.
• Small Package Size: Available in a compact R-7 package, it is suitable for space-constrained applications.

Applications

The ADR4525DEZ-R7's combination of features makes it particularly well-suited for precision data acquisition systems, high-resolution converters, and all applications where an accurate and stable reference voltage is critical. Its robustness also makes it a preferred choice for industrial and automotive electronics that must operate reliably under varying temperatures and conditions.

With its exceptional performance and versatility, the ADR4525DEZ-R7 from Analog Devices Inc. represents a top-tier solution for designers looking to enhance the accuracy and stability of their electronic systems.
