Introducing the LTC3260IDE from Analog Devices Inc.

The LTC3260IDE is a versatile and high-performance integrated circuit designed by Analog Devices Inc., a leader in the semiconductor industry. This robust product is an inverting charge pump DC/DC converter with dual LDO (Low Dropout) regulators, making it an excellent choice for a wide range of applications that require a negative supply from a single positive input.

Key Features:

• Inverting Charge Pump: The LTC3260IDE can generate a negative voltage from a positive input voltage, providing an inverting charge pump with adjustable output.
• Dual Low Dropout Regulators: It includes two LDO regulators that can deliver up to 100mA of continuous output current each, ensuring stable and noise-free voltage supplies.
• Wide Input Voltage Range: The device is capable of operating with an input voltage range from 4.5V to 32V, accommodating various power sources and conditions.
• Adjustable Output Voltage: The output voltage is adjustable via external resistors, providing design flexibility to meet specific application requirements.
• Low Quiescent Current: It features a low quiescent current, which makes it suitable for battery-operated devices and power-sensitive applications.
• Overcurrent and Overtemperature Protection: The LTC3260IDE includes built-in protection features to safeguard the device against adverse conditions.

Applications:

The LTC3260IDE is ideal for use in a variety of applications, such as:

• Industrial control systems
• Portable and battery-powered equipment
• Negative voltage generation for GaAsFET biasing
• Automotive power systems
• Low noise instrumentation

Product Specifications:

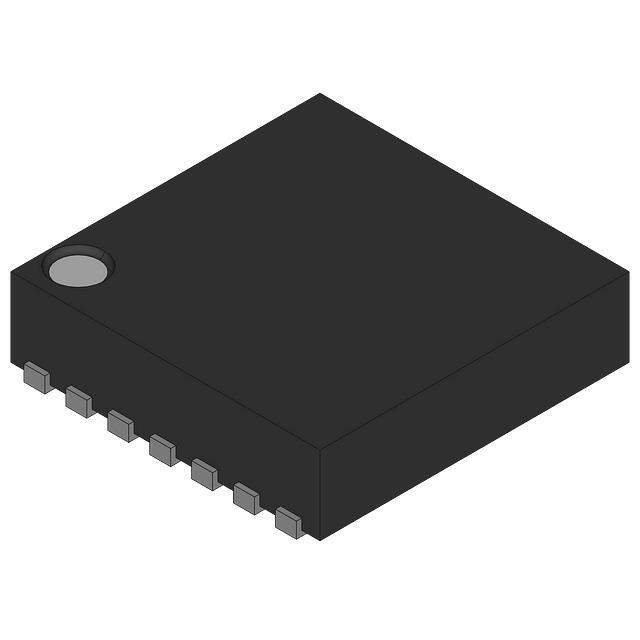

The LTC3260IDE is offered in a compact 14-lead DFN package, providing a space-saving solution for modern electronic systems. Its operating temperature range from -40°C to 125°C ensures reliability across a broad spectrum of environments and usage scenarios.

Whether you're designing sophisticated industrial machinery or portable consumer electronics, the LTC3260IDE from Analog Devices Inc. offers the performance, flexibility, and reliability you need to create efficient and durable power supply solutions.
