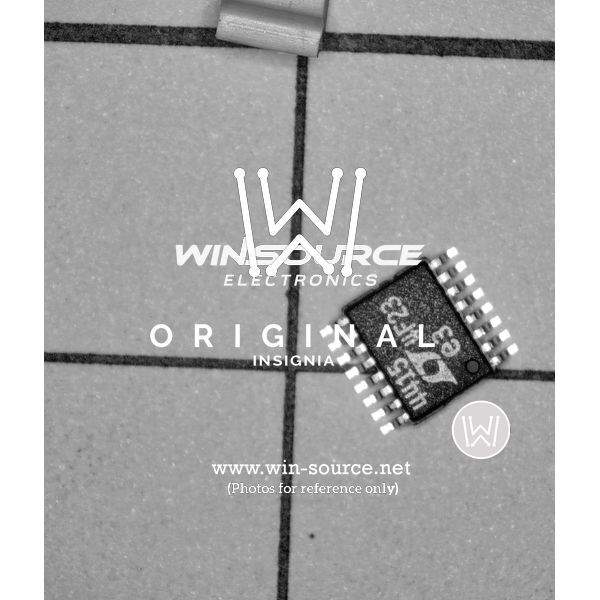

Analog Devices Inc. LTC4415IMSE#TRPBF Dual Ideal Diode PowerPath Controller

The LTC4415IMSE#TRPBF from Analog Devices Inc. is a high-performance dual ideal diode and PowerPath controller that ensures seamless power transfer between two input sources. This advanced component is designed for use in applications requiring low loss power ORing, redundant power supplies, or for combining multiple power sources efficiently. The LTC4415 facilitates the sharing of power between batteries, supercapacitors, or wall adapters, making it an ideal choice for portable devices, automotive systems, and industrial equipment.

Encased in a compact 12-lead MSOP package, the LTC4415IMSE#TRPBF boasts a wide operating voltage range from 2.5V to 5.5V, making it versatile for various low voltage applications. Its internal ideal diodes exhibit a low forward voltage drop, which helps to minimize power dissipation and preserve battery life in portable applications. The device also features a low quiescent current that contributes to energy efficiency, particularly in standby or low power modes.

With its fast switch-over capability, the LTC4415 ensures that the output remains uninterrupted even when one power source fails or is disconnected. This is critical for applications that cannot tolerate power interruptions, such as memory storage devices and communication modules. Furthermore, the device includes built-in protection features such as overcurrent protection, thermal protection, and reverse battery protection, enhancing the reliability and safety of the end application.

The LTC4415IMSE#TRPBF is characterized by its strong performance in load sharing and cross regulation between channels. This feature is particularly beneficial when managing power from sources with different potentials or when it is necessary to balance the load between multiple batteries. The device's status outputs can be used to indicate which input is currently supplying power, providing valuable information for system monitoring and control.

In summary, Analog Devices Inc.'s LTC4415IMSE#TRPBF is a sophisticated, high-efficiency solution for managing dual-input power in a wide range of applications. Its robust feature set and compact form factor make it an excellent choice for designers looking to enhance power management and reliability in their systems.
