Analog Devices Inc. LTC6655BHLS8-5 Precision Voltage Reference

The LTC6655BHLS8-5 is a high-precision, low-noise, low-drift voltage reference from Analog Devices Inc., designed to ensure stability and accuracy in a wide array of applications. This reference device is part of the LTC6655 series, known for its excellent temperature stability and output voltage precision, making it an ideal choice for high-performance data converters, precision instruments, and industrial control systems.

Key Features

• Output Voltage: The LTC6655BHLS8-5 provides a fixed 5V output, which is a common reference voltage for many electronic components and systems.
• Low Noise: It boasts an exceptionally low noise specification, contributing to superior signal integrity in sensitive applications such as medical equipment and high-end audio.
• High Stability: With long-term stability and low drift over time and temperature, this voltage reference ensures reliable performance even under varying environmental conditions.
• Wide Operating Temperature Range: The device is operational over a broad temperature range, making it suitable for both commercial and industrial applications.
• Excellent Line and Load Regulation: The LTC6655BHLS8-5 maintains a consistent output despite changes in input voltage and load, ensuring a stable reference under dynamic conditions.
• Low Dropout Voltage: This feature allows the voltage reference to function correctly even when the supply voltage is close to the output voltage, providing flexibility in power supply design.

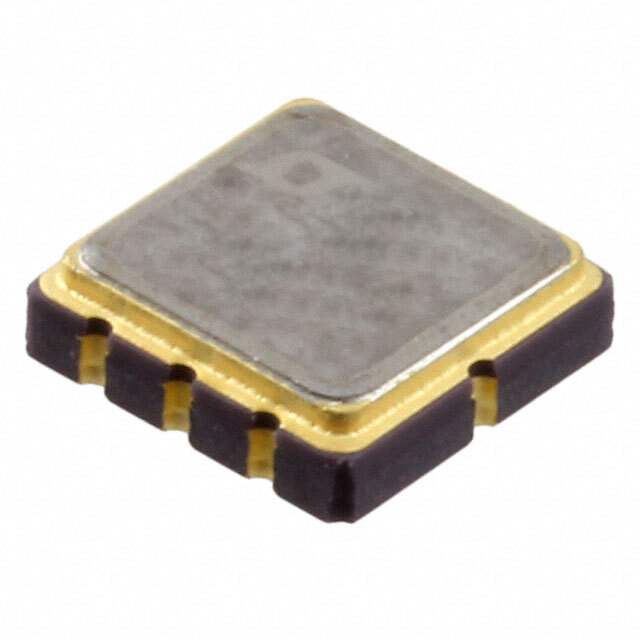

• Package Options: The device is available in an 8-lead LS8 package, designed to optimize board space and ensure ease of integration into a variety of systems.

Applications

The LTC6655BHLS8-5's precision and robustness make it an excellent choice for critical applications that require a stable voltage reference. These include:

• High-resolution Analog-to-Digital Converters (ADCs)
• Digital-to-Analog Converters (DACs)
• Precision Instrumentation
• Industrial Control Systems
• Automotive Electronics
• Medical Devices
• Portable Test Equipment

Analog Devices Inc.'s commitment to quality ensures that the LTC6655BHLS8-5 voltage reference meets the highest industry standards, providing designers and engineers with a reliable component for precision applications.
