The DAC80-CBI-V is a high-performance, 12-bit digital-to-analog converter (DAC) developed by Analog Devices Inc., a leader in the design and manufacturing of analog, mixed-signal, and DSP integrated circuits. This precision DAC is designed for applications where accuracy and stability are paramount, making it an ideal choice for industrial, medical, and scientific instrumentation, as well as automated test equipment.
Featuring a voltage output, the DAC80-CBI-V operates with a bipolar supply ranging from ±11.4V to ±16.5V, providing users with a versatile range for various system requirements. Its monolithic construction ensures excellent thermal tracking and stability, thereby reducing the need for frequent calibration and ensuring reliable performance over its entire operating temperature range.
The DAC80-CBI-V incorporates a number of features that contribute to its superior performance. Its 12-bit resolution ensures fine granularity in the analog output, allowing for precise control in critical applications. The device's settling time is remarkably fast, and its linearity errors are minimized to provide a highly accurate output signal. Moreover, the DAC80-CBI-V boasts a low glitch impulse, which is essential for reducing undesired transients when the digital input changes, thus maintaining signal integrity.
Integration is made simple with the DAC80-CBI-V's versatile interface, which is compatible with various logic families. This allows for easy connection to a wide array of microprocessors and digital systems without the need for additional interfacing components. The device is also equipped with a data latch and a double-buffered interface, enabling asynchronous updating of the analog output, which is particularly useful in multiplexed applications.

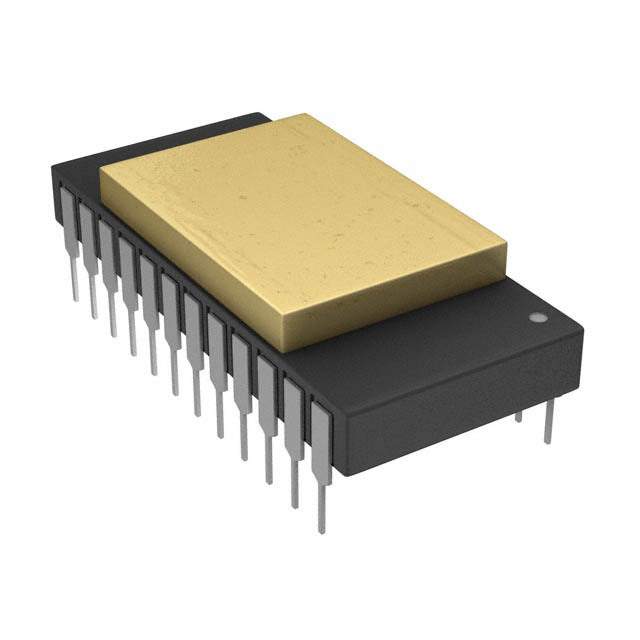

Enclosed in a robust 24-pin ceramic dual in-line package (C-DIP), the DAC80-CBI-V is designed for durability and long-term reliability. Analog Devices Inc. ensures that each unit is meticulously tested and calibrated to meet stringent specifications, providing designers with a dependable solution for their high-precision analog output needs.
In summary, the DAC80-CBI-V from Analog Devices Inc. is a testament to the company's commitment to delivering high-quality, precision-engineered components. Its performance and features make it a top choice for professionals seeking a reliable DAC for their demanding applications.
