DAC8420FQ

Part No DAC8420FQ
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description IC DAC 12BIT V-OUT 16CDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 38 Weeks
Features 12 Bit Digital to Analog Converter 4 16-CERDIP
Manufacturer Analog Devices Inc.
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Through Hole
Package 16-CDIP (0.300", 7.62mm)
Case / Package 16-CERDIP
Family Name DAC8420
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 916773-DAC8420FQ
Ultra Librarian 3D Model Ultra Librarian DAC8420FQ CAD Model

Description

DAC8420FQ: Precision Quad Voltage Output 16-bit DAC

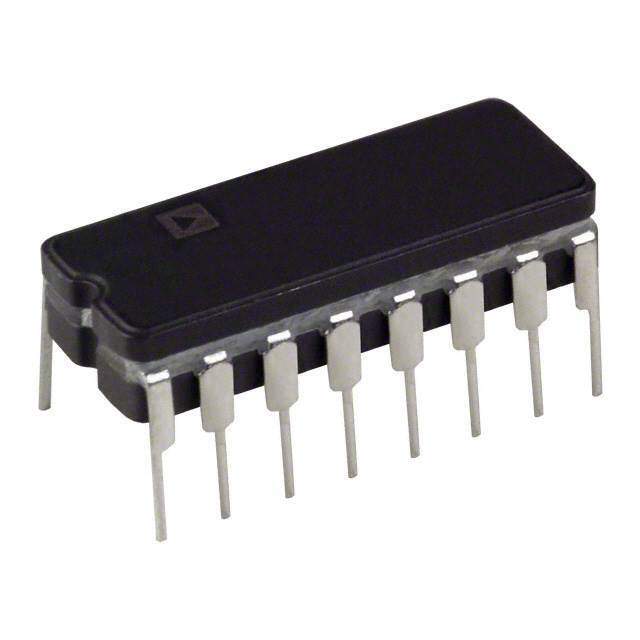

DAC8420FQ Product Image

The DAC8420FQ from Analog Devices Inc. is a high-precision, quad voltage output 16-bit digital-to-analog converter (DAC) designed to deliver exceptional performance and accuracy in a wide range of applications. Its four individual DAC units are packed into a single package, making it an ideal solution for systems requiring multiple DACs with limited space.

Key Features:

  • High Resolution: 16-bit resolution provides fine-grain output voltage control, allowing for precise adjustments and signal generation.
  • Quad Channels: Four independent DAC channels enable simultaneous output of four different voltage levels, facilitating complex tasks like waveform generation.
  • Stable and Accurate: The DAC8420FQ offers excellent stability and low temperature coefficient, ensuring accurate outputs over a wide temperature range.
  • Low Power Consumption: Designed with power efficiency in mind, it operates with a low power requirement, making it suitable for portable and battery-operated equipment.
  • Flexible Reference Input: The device supports a wide range of reference voltages, giving designers flexibility in system-level design.
  • Serial Interface: Its serial input interface simplifies the digital interface and reduces the number of required I/O lines, which is essential for high-density mounting and complex PCB layouts.

Applications:

The DAC8420FQ is versatile and can be used in various applications, such as:

  • Industrial Process Control
  • Data Acquisition Systems
  • Automated Test Equipment
  • Digital Offset and Gain Adjustment
  • Medical Instruments

Quality and Reliability:

Analog Devices Inc. is known for its commitment to quality and reliability, and the DAC8420FQ is no exception. It is built to meet high standards, ensuring consistent performance and a long operational life for your critical applications.

For more detailed specifications, application notes, and support resources, please refer to the official product page or contact Analog Devices Inc. directly.
