EVAL-AD7705EBZ Evaluation Board

The EVAL-AD7705EBZ is a high-performance evaluation board presented by Analog Devices Inc., designed to showcase the capabilities of the AD7705, a 16-bit, low power, Sigma-Delta ADC (Analog to Digital Converter). This evaluation board is an essential tool for designers and engineers looking to test and implement the AD7705 in their data acquisition systems, particularly in applications requiring high precision and low power consumption.

The AD7705 features a dual-channel design, allowing it to handle two different input types simultaneously, which is ideal for multi-sensor systems. It is optimized for direct connection to transducers, minimizing the need for external signal conditioning. Its on-chip factory calibration ensures high accuracy, and it can be re-calibrated with the user's system calibration values. The ADC operates from a single power supply and is compatible with 3V or 5V logic, making it versatile for various applications.

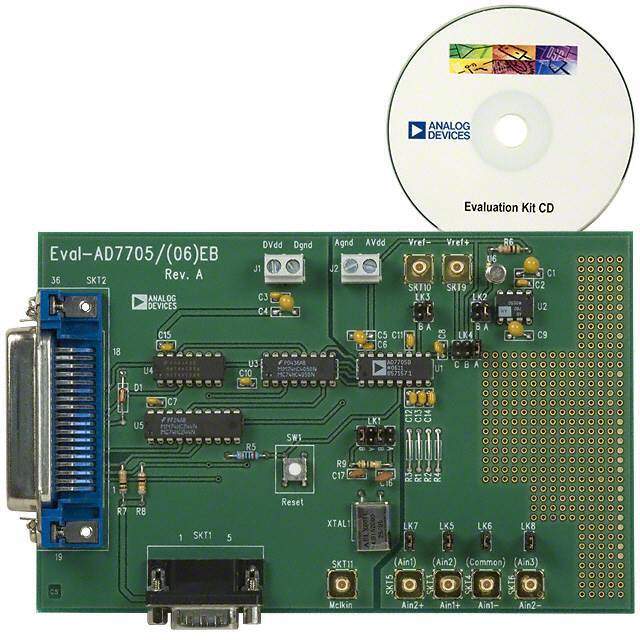

The EVAL-AD7705EBZ evaluation board comes with a range of features that facilitate easy testing and integration. It includes reference and analog input terminals, and a serial interface port. The board can be connected to a host computer using the serial port, allowing for straightforward data collection and analysis. This feature is particularly useful for performance evaluation and prototyping.

Additionally, the EVAL-AD7705EBZ is equipped with various configurable options, enabling users to experiment with different settings. Users can select the gain and channel, control the filtering options, and choose the clock source. These features allow for a comprehensive evaluation of the AD7705's performance under different conditions.

Overall, the EVAL-AD7705EBZ is a robust tool for evaluating the AD7705 ADC. It simplifies the process of assessing the ADC's features and performance, accelerating development time and helping engineers to create more efficient and reliable data acquisition systems. With its user-friendly interface and flexible configuration, the EVAL-AD7705EBZ is an invaluable asset for any project requiring a high-quality, low-power ADC solution.
