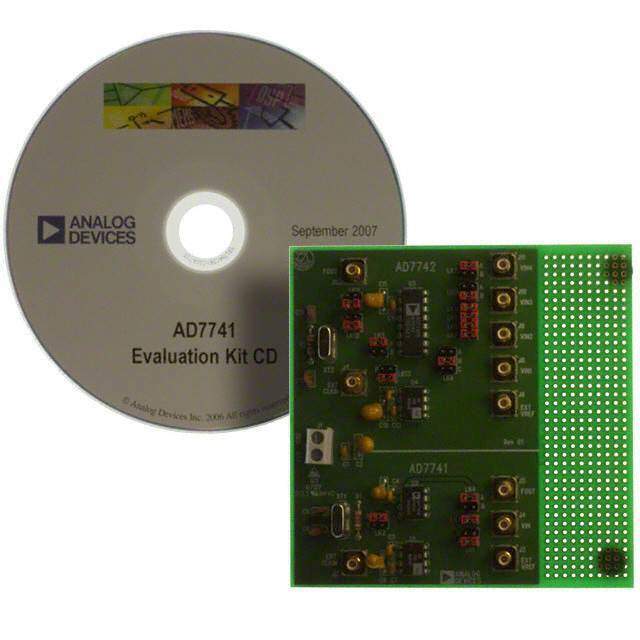

EVAL-AD7741/42EBZ Evaluation Board from Analog Devices Inc.

The EVAL-AD7741/42EBZ is a high-performance evaluation board designed by Analog Devices Inc. to showcase the capabilities of the AD7741 and AD7742, which are high-precision, Σ-Δ (Sigma-Delta) frequency-to-digital converters. These converters are particularly suited for applications requiring a high degree of accuracy and noise immunity in signal conversion, making them ideal for industrial and instrumentation applications.

Key Features

• Compatibility: The EVAL-AD7741/42EBZ is compatible with both the AD7741 and AD7742 chips, offering flexibility in testing and development.
• Easy to Use: The evaluation board is user-friendly and comes equipped with all necessary connectors and power supply options, simplifying the setup process for engineers and developers.
• Software Support: Accompanied by a comprehensive software package, this evaluation board allows for easy interfacing with a PC, enabling users to analyze and manipulate data in real-time.

Applications

The AD7741 and AD7742 chips are particularly useful in precision measurement applications. This includes:

• Industrial Process Control
• Weigh Scales
• Pressure Measurement
• Portable Instrumentation

Technical Specifications

The EVAL-AD7741/42EBZ offers the following technical specifications:

• Input Frequency Range: The board can handle a wide range of input frequencies, accommodating various sensor types.
• Resolution: High-resolution data conversion ensures accurate and precise measurement.
• Interface: The board includes a serial interface for communication with most microcontrollers and digital systems.

Package Contents

The evaluation board package includes:

• EVAL-AD7741/42EBZ Evaluation Board
• USB Cable for PC Connection
• Software CD with Data Analysis Tools
• User Guide and Documentation

With the EVAL-AD7741/42EBZ, engineers and developers can quickly and efficiently evaluate the performance of AD7741 and AD7742 frequency-to-digital converters, accelerating the development cycle and ensuring a smooth transition from concept to production.
