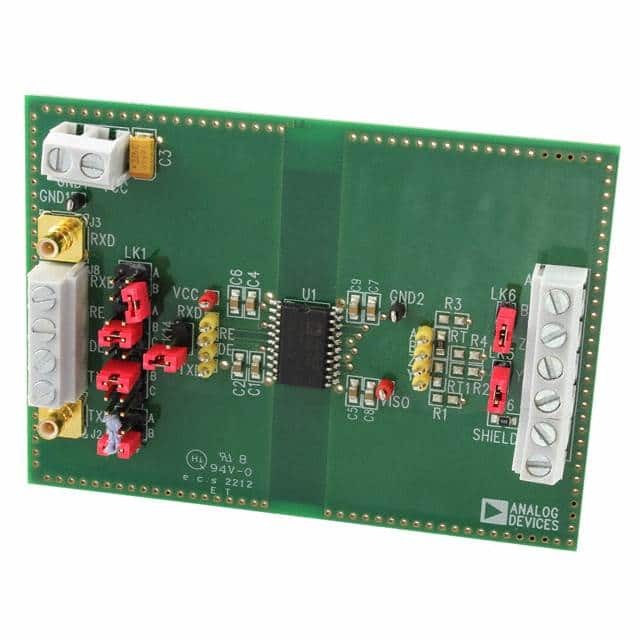

EVAL-ADM2582EEBZ Evaluation Board by Analog Devices Inc.

The EVAL-ADM2582EEBZ is a high-performance evaluation board presented by Analog Devices Inc., designed to demonstrate the capabilities of the ADM2582E, an integrated signal and power isolated data transceiver with ±15 kV ESD protection. This board facilitates the testing and prototyping of applications requiring isolated RS-485/RS-422 communication interfaces.

Key Features of the EVAL-ADM2582EEBZ:

• Integrated Isolation: The ADM2582E incorporates Analog Devices' iCoupler® technology to provide isolation between the logic side and the bus side, ensuring robust operation in electrically noisy environments.
• High-Speed Operation: Supports data rates up to 2 Mbps, making it suitable for high-speed serial communication.
• Robust ESD Protection: With ±15 kV ESD protection on the transceiver bus pins, the board is designed to withstand harsh electrical environments and enhance system reliability.
• Easy to Use: The evaluation board comes with pre-routed traces for immediate use and minimal setup, allowing for straightforward evaluation of the ADM2582E features.
• Flexible Power Options: The board can be powered through the USB port or external power supply, providing versatility for different testing scenarios.
• Convenient Connectors: Terminal blocks and an on-board DB9 connector offer easy interfacing with RS-485/RS-422 networks.

Applications:

The EVAL-ADM2582EEBZ is ideal for developing and testing applications in industrial automation, instrumentation, and other scenarios where isolated data communication is critical. It's particularly suited for:

• Industrial Field Buses
• Process Control Interfaces
• Data Acquisition Systems

Technical Support and Resources:

Analog Devices Inc. provides extensive technical documentation for the EVAL-ADM2582EEBZ, including a detailed user guide, data sheets for the ADM2582E transceiver, and application notes. These resources are designed to assist developers in quickly integrating the board into their projects and to ensure a smooth development process.

With its combination of high-speed data transmission, integrated isolation, and robust protection features, the EVAL-ADM2582EEBZ from Analog Devices Inc. is an essential tool for engineers working on advanced isolated communication solutions.
