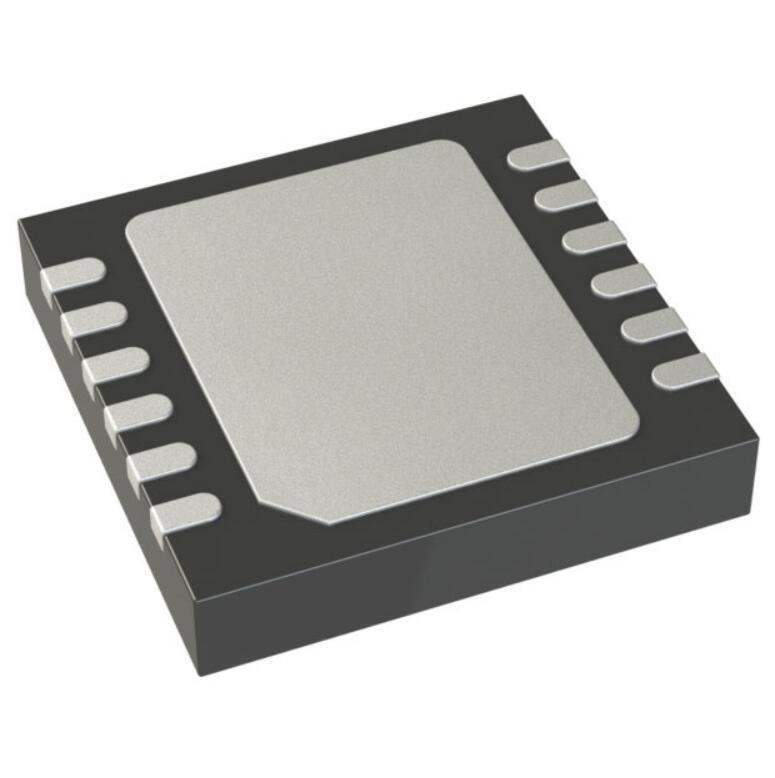

LT1469AIDF-2#PBF

Part No LT1469AIDF-2#PBF
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 2 CIRCUIT 12DFN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202738-LT1469AIDF-2#PBF
Win Source Part Number Cross
Manufacturer Analog Devices Inc.
Category Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps
Series LT®
Package Tube
Product Status Active
Amplifier Type General Purpose
Slew Rate 30V/µs
Gain Bandwidth Product 200 MHz
Current - Input Bias 3 nA
Voltage - Input Offset 50 µV
Ultra Librarian 3D Model Ultra Librarian LT1469AIDF-2#PBF CAD Model

Description

Analog Devices Inc. LT1469AIDF-2#PBF: Precision Operational Amplifier

The LT1469AIDF-2#PBF is a high-performance operational amplifier (op-amp) from Analog Devices Inc., designed to offer a perfect blend of speed and precision for a wide array of applications. This dual precision op-amp features low noise and high output drive capability, making it an excellent choice for audio, test and measurement, and sensor interface applications.

With its low offset voltage of just 50 µV and low input bias currents, the LT1469AIDF-2#PBF ensures accuracy and stability in high-precision circuits. The device operates over a wide supply range of ±2.5V to ±15V, allowing for flexible design options in both single and dual supply configurations. Its high slew rate of 25V/µs and gain bandwidth product of 90MHz make it suitable for fast signal processing tasks, without sacrificing the quality of the output signal.

The LT1469AIDF-2#PBF boasts a robust output drive capability, delivering up to ±50mA of output current. This feature enables the op-amp to drive capacitive loads effectively, which is crucial for maintaining signal integrity in buffering and driving ADCs or DACs. With a low total harmonic distortion (THD) of -106dB, the device ensures high-fidelity signal amplification, making it a preferred choice for professional audio equipment.

Encased in a compact 10-lead DFN package, the LT1469AIDF-2#PBF is designed for space-constrained applications, while its extended industrial temperature range of -40°C to 85°C guarantees reliable performance in harsh environments. Its no phase reversal characteristic ensures that the output remains stable even when the input exceeds the common-mode voltage range, providing additional protection in closed-loop systems.

In summary, the LT1469AIDF-2#PBF from Analog Devices Inc. is a versatile and reliable operational amplifier that offers an exceptional balance of speed, precision, and power. Its performance parameters make it an ideal choice for designers looking to enhance the accuracy and efficiency of their electronic systems across various industries.
