The LT3065EDD-5#PBF from Analog Devices Inc. is a high-performance, low dropout linear regulator (LDO) designed to deliver a continuous output current of up to 500mA with a fixed output voltage of 5V. This component is part of a family of LDOs that provide significant advances in noise reduction, low quiescent current, and extended battery life in portable devices.

The LT3065 features a wide input voltage range from 1.8V to 45V, making it suitable for a diverse array of applications, from automotive to industrial control systems. Its low dropout voltage ensures efficient operation even when the difference between the input and output voltage is minimal, thereby maximizing battery life in portable applications.

One of the standout features of the LT3065EDD-5#PBF is its ultra-low noise performance without the need for an additional noise bypass capacitor, which is typically required by other regulators. This is particularly beneficial in sensitive RF and audio applications where noise can significantly affect performance. Additionally, the device includes current limit and thermal shutdown features, providing essential protection for your circuitry.

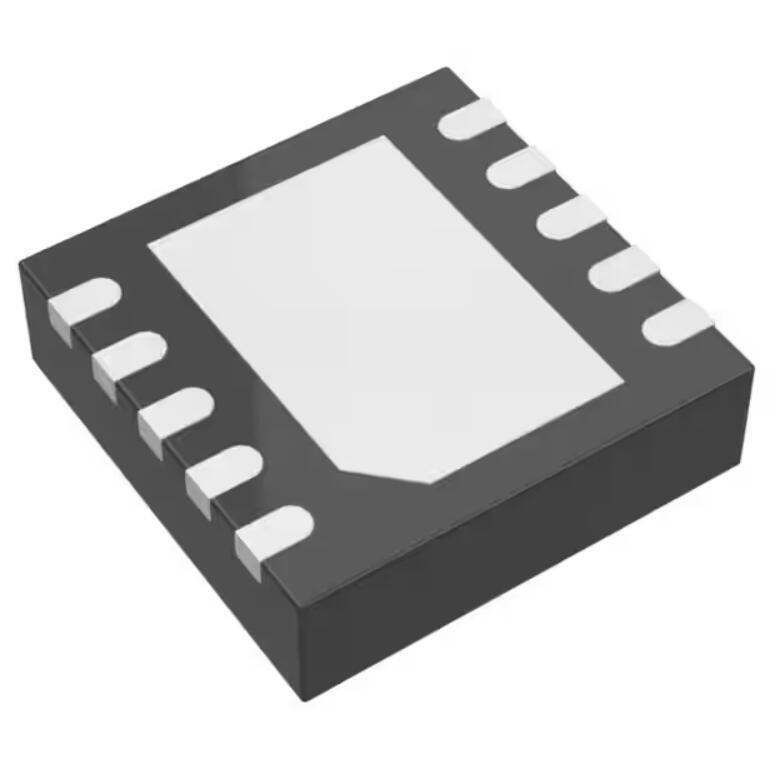

The regulator comes in a compact 10-lead DFN (3mm x 3mm) package, designed to occupy minimal board space while offering excellent thermal performance. It is also available in an MSOP package with a thermal pad for enhanced thermal performance. The LT3065EDD-5#PBF is rated for operation from -40°C to 125°C, ensuring reliable performance in a wide range of environments.

Key features of the LT3065EDD-5#PBF include:

• Fixed Output Voltage: 5V
• Output Current: 500mA
• Input Voltage Range: 1.8V to 45V
• Dropout Voltage: Low
• Noise: Ultra-Low
• Package: 10-Lead DFN or MSOP
• Operating Temperature Range: -40°C to 125°C
• Protection Features: Current Limit, Thermal Shutdown

Whether you're designing power supplies for sensitive analog circuits, precision data converters, or portable battery-powered devices, the LT3065EDD-5#PBF offers the performance and features to meet your needs.
