Product Overview: LT4356IDE-2#PBF

The LT4356IDE-2#PBF is a robust surge stopper from Analog Devices Inc., designed to protect sensitive electronic components from high voltage spikes and surges that can occur in a variety of applications. This device is engineered to safeguard low voltage systems against transient overvoltage events, such as those caused by load dump in vehicles, lightning strikes, and power supply faults.

The LT4356IDE-2#PBF operates by controlling an external N-channel MOSFET to act as a variable resistor during transient conditions, thus regulating the output voltage to a safe level. When the input voltage exceeds the overvoltage lockout (OVLO) threshold, the device limits the gate voltage of the MOSFET, thereby clamping the output voltage to a safe level. Additionally, it features an under voltage lockout (UVLO) function that ensures the device operates only when the input voltage is within a specified range, preventing potential malfunctions during low input conditions.

This robust device is capable of withstanding temporary overvoltage events up to 100V and can operate continuously with input voltages up to 60V, making it a versatile solution for automotive, industrial, and avionic systems, among others. The LT4356IDE-2#PBF also includes a fault output indicator that signals when the input voltage is out of the desired range, providing diagnostic feedback to the system.

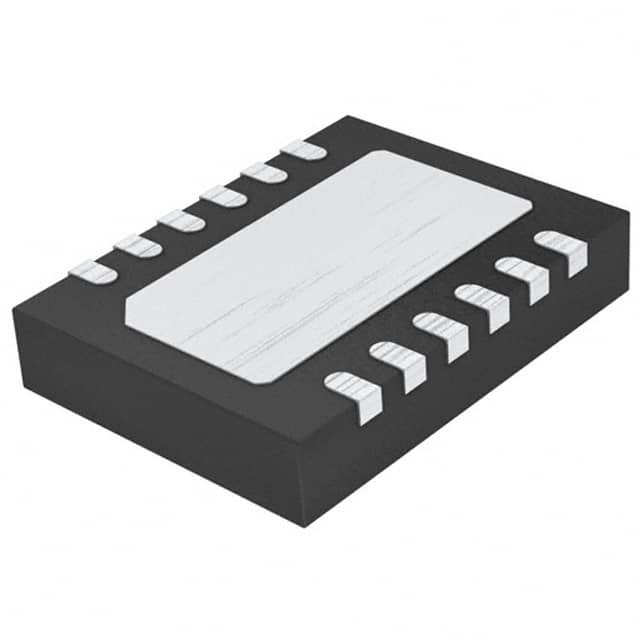

The product comes in a compact 12-lead DFN (4mm x 3mm) package with a lead-free finish, ensuring compliance with RoHS directives and making it suitable for space-constrained applications. Its robust design includes overcurrent protection with adjustable threshold and delay, which helps prevent damage to the MOSFET and the protected load during prolonged overvoltage conditions.

With its ability to seamlessly integrate into existing circuit designs and provide reliable protection against voltage transients, the LT4356IDE-2#PBF is an ideal choice for designers looking to enhance the durability and reliability of their power supply systems.

Note: For further technical details, reference the full datasheet provided by Analog Devices Inc., which includes comprehensive specifications, application circuits, and safety information.
