Analog Devices Inc. LTC3315BIV#TRMPBF Overview

The LTC3315BIV#TRMPBF is a high-performance, dual-channel, synchronous step-down monolithic regulator from Analog Devices Inc. This advanced power solution is designed to meet the rigorous power requirements of modern electronic devices, delivering efficient voltage conversion with a compact footprint.

Key Features

• Wide Input Voltage Range: The device operates from an input voltage range of 2.25V to 5.5V, making it ideal for single-cell Li-Ion/NiMH applications or multi-cell alkaline applications.
• Dual 1.5A Outputs: Each channel is capable of delivering up to 1.5A of continuous output current, providing a total of 3A for both channels combined.
• High Efficiency: The LTC3315BIV#TRMPBF features high-efficiency synchronous operation with peak efficiencies of up to 95%, ensuring minimal heat generation and extended battery life.
• Adjustable Frequency: Users can adjust the switching frequency from 1MHz to 4MHz or synchronize it to an external clock, allowing flexibility in optimizing the trade-off between efficiency and external component size.
• Low Noise Operation: The device's constant frequency, current mode architecture minimizes noise and ripple, making it suitable for noise-sensitive applications.
• Robust Protection Features: It includes over-temperature protection, over-current protection, and short-circuit protection, enhancing the reliability and longevity of the end application.

Applications

The LTC3315BIV#TRMPBF is versatile and can be used in a wide range of applications, including:

• Portable Instruments
• Medical Devices
• Wireless Modems
• Handheld Radios
• Point-of-Sale Equipment
• GPS Devices

Package and Availability

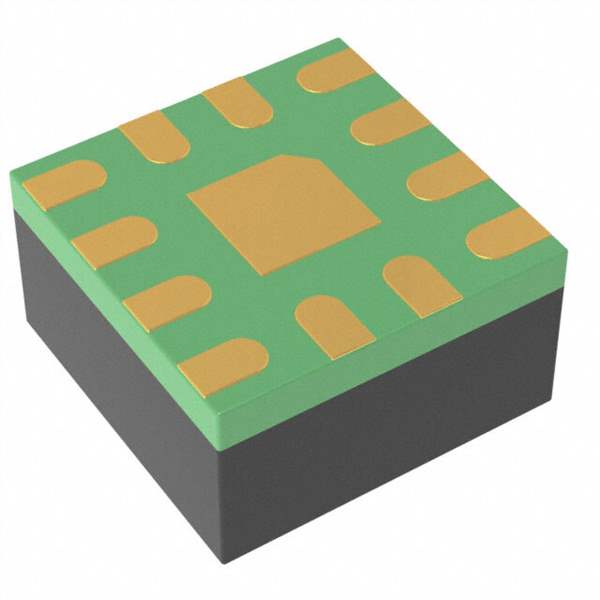

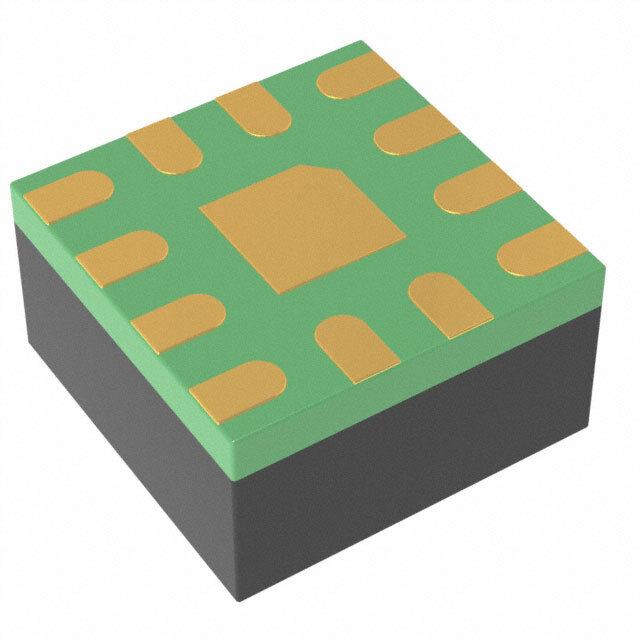

This regulator is available in a compact 3mm x 4mm QFN-24 package, which is suitable for space-constrained applications. The part number LTC3315BIV#TRMPBF indicates that it is provided in tape and reel packaging, making it suitable for automated manufacturing processes.

Conclusion

With its dual-channel output, high efficiency, and comprehensive protection features, the LTC3315BIV#TRMPBF from Analog Devices Inc. is a robust and reliable power management solution for designers looking to optimize their power systems in a variety of demanding applications.
