LTC3370EUH#TRPBF - High Efficiency Configurable Quad Output Buck Regulator

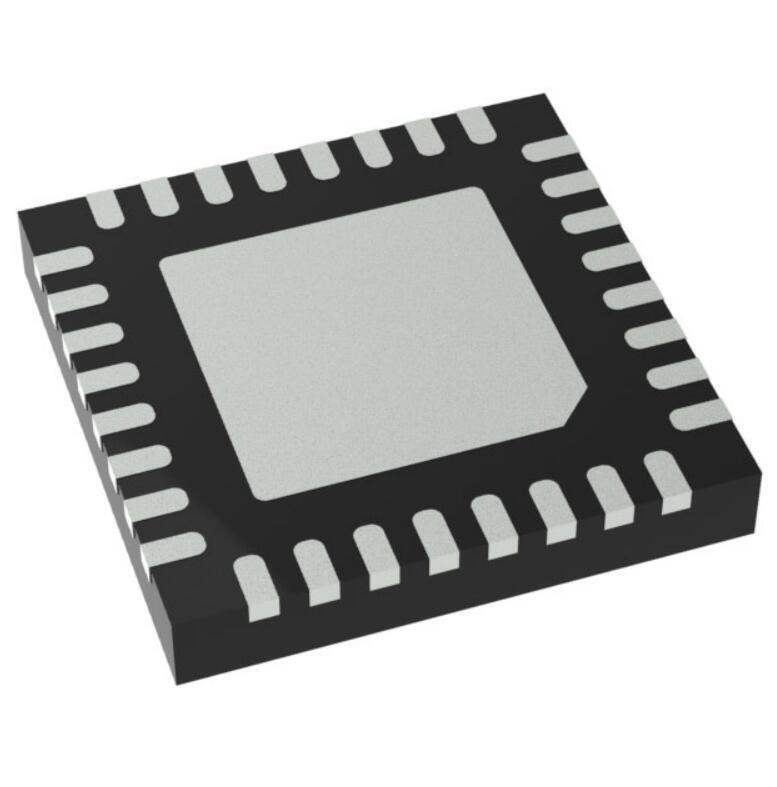

The LTC3370EUH#TRPBF from Analog Devices Inc. is a highly versatile and efficient quad output buck regulator designed to cater to a wide array of applications requiring multiple low voltage outputs. This integrated circuit simplifies the power management system by combining four high-efficiency step-down regulators in a compact 32-lead QFN package.

Key Features:

• Wide Input Voltage Range: The device operates from a wide input voltage range of 2.25V to 5.5V, making it suitable for applications powered by single-cell Li-Ion batteries, multi-cell alkaline batteries, or standard 3.3V and 5V power rails.
• Configurable Outputs: Each of the four regulators can be independently set to a fixed output voltage or configured to share their inductor with neighboring channels for higher output current capability, providing exceptional flexibility in power design.
• High Efficiency: The LTC3370 features high-efficiency synchronous operation, which extends battery life and reduces heat dissipation, a critical aspect for portable and compact electronic devices.
• Programmable Frequency: With a programmable switching frequency from 1MHz to 3MHz, designers can optimize the balance between efficiency and external component size.
• Robust Protection Features: The device includes over-current protection, over-temperature protection, and short-circuit protection, ensuring reliable operation under various conditions.

Applications:

The LTC3370EUH#TRPBF is ideal for a variety of applications where multiple power rails are needed, such as:

• Handheld Devices
• Portable Medical Equipment
• Industrial Control Systems
• Point-of-Sale Machines
• Automotive Power Systems

With its compact size, high efficiency, and design flexibility, the LTC3370EUH#TRPBF by Analog Devices Inc. is a comprehensive power management solution that meets the needs of today's sophisticated electronic systems.
