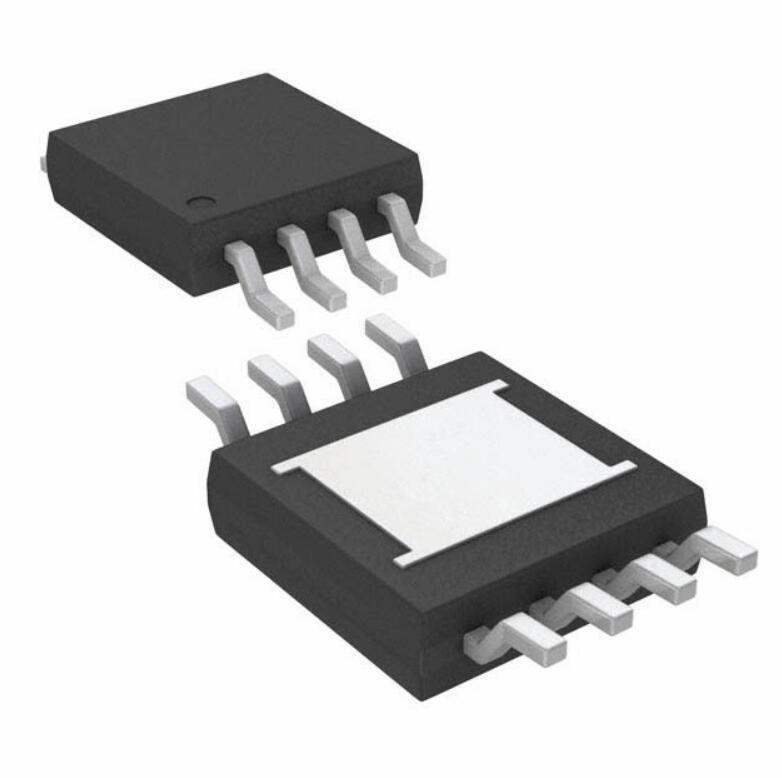

The LTC3642EMS8E-5#TRPBF is a high-efficiency, low noise, monolithic synchronous step-down DC/DC converter from Analog Devices Inc., designed to deliver a fixed output voltage of 5V. Packaged in a compact MSOP-8 (EMS8) package with a lead-free finish, this advanced power solution is ideal for portable battery-powered devices where space and power efficiency are critical.

Key Features

• Wide Input Voltage Range: Capable of operating from an input voltage range of 4.5V to 45V, this converter is versatile enough to handle a variety of power sources, from single-cell lithium-ion batteries to industrial supplies.
• Adjustable Switching Frequency: Users can set the switching frequency anywhere from 200kHz to 2.2MHz with an external resistor, allowing flexibility in balancing efficiency and component size.
• Low Dropout Operation: The LTC3642EMS8E-5#TRPBF's low dropout performance is ideal for applications requiring maximum efficiency at low input voltages.
• Internal Synchronous Rectification: The inclusion of internal synchronous rectification enhances efficiency by reducing power loss due to diode forward voltage drop.
• Over-temperature Protection: Built-in thermal protection ensures reliable operation by shutting down the device to prevent damage under excessive temperature conditions.

Applications

This converter is well-suited for a variety of applications, including but not limited to:

• Portable Instruments
• Battery-Powered Equipment
• Industrial Power Supplies
• Automotive Accessories
• Embedded Systems

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality and reliability, and the LTC3642EMS8E-5#TRPBF is no exception. It is designed to meet the stringent requirements of the most demanding applications. The device is RoHS compliant, ensuring it meets current environmental standards for hazardous substances.

Conclusion

The LTC3642EMS8E-5#TRPBF from Analog Devices Inc. is a robust and reliable power conversion solution, providing designers with a versatile and efficient option for a wide range of applications. Its compact size, combined with high efficiency and a comprehensive set of features, makes it an excellent choice for modern electronic devices.
