Analog Devices Inc. LTC3670EDDB#TRMPBF Overview

The LTC3670EDDB#TRMPBF from Analog Devices Inc. is a high-performance, versatile power management integrated circuit (PMIC) designed to meet the rigorous requirements of complex digital systems. This compact, monolithic synchronous buck regulator provides high efficiency and fast transient response, making it ideal for portable battery-powered applications as well as industrial and automotive systems.

With an input voltage range of 2.25V to 5.5V, the LTC3670EDDB#TRMPBF is suitable for single-cell Li-Ion/Polymer, or multi-cell alkaline/NiMH applications, as well as standard 3.3V and 5V power rails. The device is capable of delivering up to 600mA of continuous output current with a high efficiency of up to 95%, which is critical for maximizing battery life in portable devices.

Key Features

• High Efficiency: Up to 95% efficiency reduces heat and extends battery life.
• Adjustable Output Voltage: The output voltage can be set from 0.6V to the input voltage, providing flexibility in powering various loads.
• Fast Transient Response: The LTC3670EDDB#TRMPBF quickly responds to changes in load, ensuring stable operation for sensitive digital circuits.
• Low Quiescent Current: It features a low quiescent current, which is crucial for battery-powered applications where power conservation is key.
• Multiple Operating Modes: Burst Mode operation for high efficiency at light loads, forced continuous mode, and shutdown mode to minimize power consumption.
• Thermal Protection: Built-in thermal shutdown provides additional protection under high-temperature conditions.

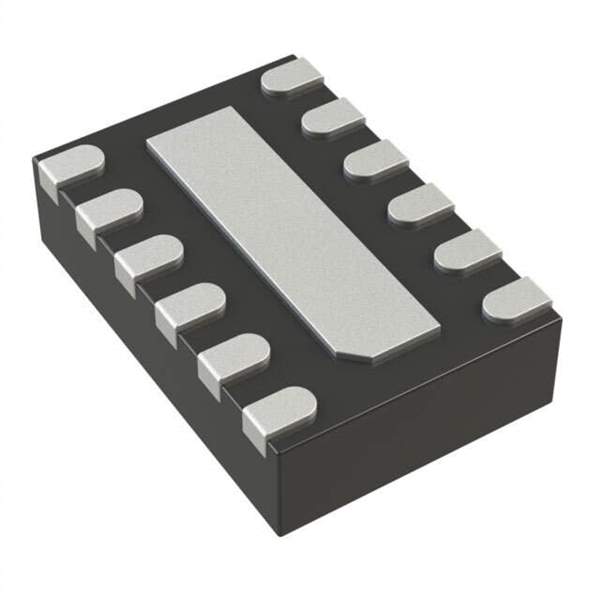

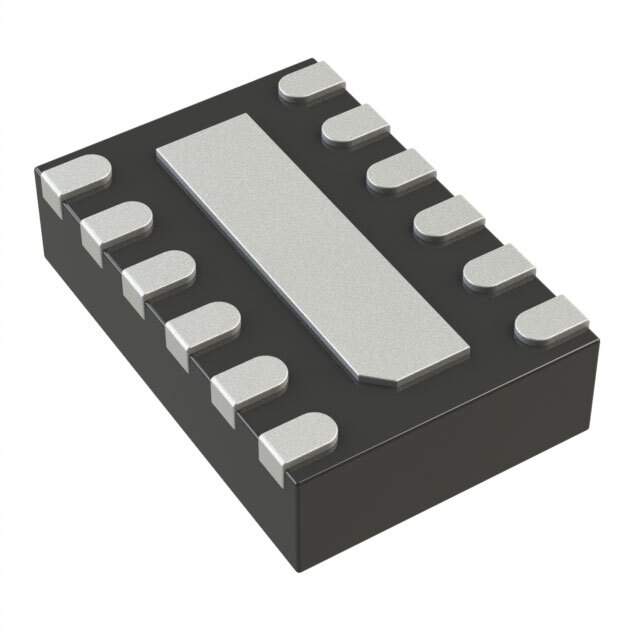

• Compact Package: Housed in a low-profile (0.75mm) 8-lead (2mm × 3mm) DFN package, it is suitable for space-constrained applications.

Applications

The LTC3670EDDB#TRMPBF is a versatile component that can be used in a wide array of applications, including but not limited to:

• Portable Instruments
• Medical Devices
• Wireless Modems
• GPS Devices
• MP3 Players

With its robust feature set and high performance, the LTC3670EDDB#TRMPBF is an excellent choice for designers looking to optimize power management in compact, power-sensitive systems.
