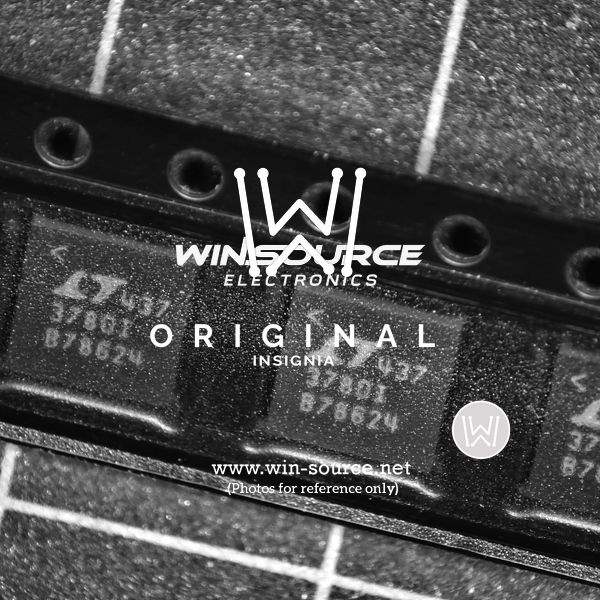

Analog Devices Inc. LTC3780IUH High Efficiency, Synchronous, 4-Switch Buck-Boost DC/DC Converter

The LTC3780IUH from Analog Devices Inc. is a versatile and high-performance DC/DC converter that is capable of operating in either buck (step-down) mode or boost (step-up) mode with a single inductor. This synchronous 4-switch buck-boost converter offers a wide input voltage range from 4V to 38V, which makes it suitable for applications that require a regulated output voltage with input voltages either above, below, or equal to the output voltage.

Designed with efficiency in mind, the LTC3780IUH integrates powerful MOSFET switches that provide continuous transition between buck and boost modes, minimizing losses and maximizing power delivery. The device is capable of delivering up to 10A of continuous output current with output voltages ranging from 0.8V to 38V, which makes it an ideal choice for a wide array of applications including automotive, industrial, telecommunications, and portable electronics.

The LTC3780IUH is housed in a compact QFN-32 package, offering a space-saving solution for modern electronic designs. It features a proprietary current mode control architecture, which allows for stable operation over a wide range of input and output voltages. The control circuitry also provides excellent line and load regulation, ensuring a consistent output even with varying input conditions or output demands.

Additional features of this high-efficiency converter include programmable frequency from 50kHz to 900kHz, which can be synchronized to an external clock, allowing for flexibility in design and optimization of component size and efficiency. It also includes a range of protective features such as overvoltage, overcurrent, and overtemperature protection, ensuring the longevity and reliability of the device under harsh conditions.

For design engineers looking for a robust power solution that can adapt to varying power requirements, the LTC3780IUH from Analog Devices Inc. presents a compelling option. With its high efficiency, wide input and output voltage range, and flexible design options, this converter stands out as a key component for power management in complex electronic systems.
