Analog Devices Inc. LTC5548IUDB#TRPBF RF Mixer

The LTC5548IUDB#TRPBF is a high-performance, passive double-balanced mixer from Analog Devices Inc., designed to provide excellent frequency conversion from 2GHz to 14GHz in RF applications. This mixer is a part of the Ultra-Wideband Mixer family, which is renowned for its superior linearity and wide frequency range, making it an ideal choice for a variety of wireless applications such as point-to-point backhaul, broadband wireless services, and satellite communications.

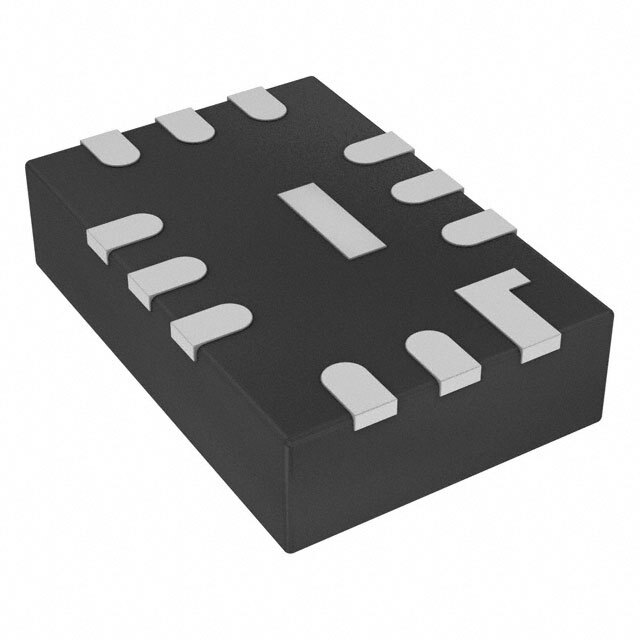

Enclosed in a compact, 3mm x 2mm DFN package, the LTC5548IUDB#TRPBF offers a robust feature set that includes a wide IF bandwidth from DC to 6GHz. This allows the mixer to support high-order QAM modulation schemes used in modern communication systems. Its low conversion loss and excellent LO to RF and LO to IF isolation ensure minimal signal distortion and reduce the need for additional filtering.

The mixer operates over a wide temperature range, making it suitable for deployment in harsh environmental conditions. It also boasts an integrated LO buffer, which simplifies the design by eliminating the need for an external driver circuit. This not only saves board space but also reduces component count and overall system cost.

Key features of the LTC5548IUDB#TRPBF include:

• Frequency Range: 2GHz to 14GHz
• IF Frequency Range: DC to 6GHz
• Passive Double-Balanced Mixer Topology
• Low Conversion Loss
• High Linearity Performance
• Integrated LO Buffer
• Compact 3mm x 2mm DFN Package

This mixer is also designed with the needs of modern RF systems in mind, offering excellent 2RF-2LO spurious suppression and a high IP3 (third-order intercept point), which is critical for maintaining signal integrity in the presence of strong interfering signals.

The LTC5548IUDB#TRPBF is available in tape and reel packaging, denoted by the 'TRPBF' suffix, which facilitates efficient assembly for high-volume production. With its combination of performance, integration, and compact size, the LTC5548IUDB#TRPBF from Analog Devices Inc. is an excellent choice for designers looking to optimize their RF signal chain for both performance and space.
