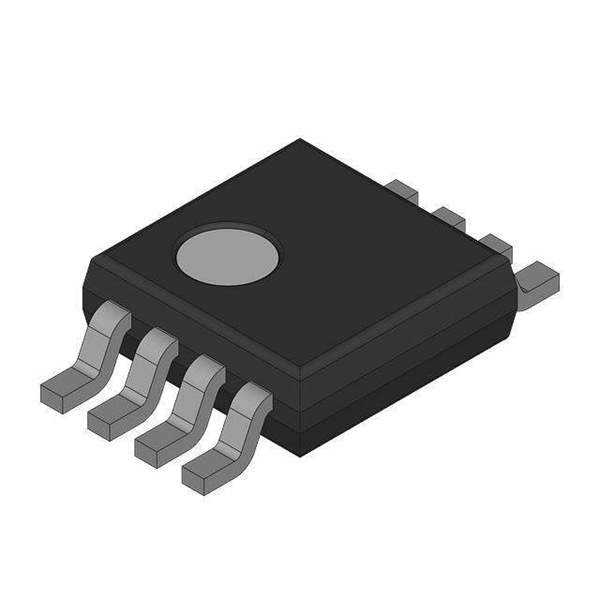

The MAX320EUA+ from Maxim Integrated is a precision, dual-channel analog switch that offers high-performance solutions for signal routing applications. It is a part of the MAX320 series, known for its reliability and efficiency in managing analog signals. This component is particularly suitable for systems requiring low on-resistance, low leakage currents, and fast switching times.

Key Features

• Low On-Resistance: The device features a low on-resistance of typically 35 ohms, ensuring minimal signal attenuation and power loss when the switch is closed.
• Single-Supply Operation: It operates from a single +2V to +12V supply, or dual supplies of ±2V to ±6V, making it versatile for various circuit configurations.
• Fast Switching: The MAX320EUA+ provides fast switching speeds (tON < 175ns, tOFF < 145ns), which is crucial for applications that require rapid signal changes.
• Low Power Consumption: With its low power consumption, the device is ideal for portable and battery-powered applications.
• High Off-Isolation: It offers excellent off-isolation of -75dB at 1MHz, minimizing crosstalk between channels when the switch is in the off state.
• Low Crosstalk: At -83dB at 1MHz, the device ensures minimal interference between the signals when switching.
• Extended Temperature Range: The MAX320EUA+ is designed to operate over an extended temperature range, from -40°C to +85°C, accommodating diverse environmental conditions.

Applications

The MAX320EUA+ is well-suited for a wide range of applications, including:

• Audio and Video Signal Routing
• Communication Systems
• Test Equipment
• Data Acquisition Systems
• Medical Equipment

With its high precision and robust performance, the MAX320EUA+ from Maxim Integrated stands out as a top choice for designers and engineers looking to improve their signal routing capabilities in compact and demanding environments.
