The OP37GSZ from Analog Devices Inc. is a high-precision operational amplifier that offers a perfect blend of speed and accuracy, making it an ideal choice for a wide range of applications including instrumentation, medical devices, and precision filters. This operational amplifier provides users with a high degree of stability and reliability, ensuring consistent performance across various conditions.

Key Features

• Ultra-Low Offset Voltage: The OP37GSZ boasts an ultra-low offset voltage, which significantly reduces voltage errors in circuits, enhancing overall accuracy and precision in measurements.
• High Gain Bandwidth: With a high gain bandwidth product, this operational amplifier can handle a wide range of frequencies without compromising on performance, making it suitable for high-speed signal processing applications.
• Low Noise: The device exhibits low noise characteristics, which is critical for sensitive applications where signal integrity is paramount.
• Fast Settling Time: It offers a fast settling time, which is beneficial for applications that require quick response times, such as data acquisition systems and digital-to-analog converters.
• High Stability: The OP37GSZ is designed to maintain its performance over temperature and supply variations, ensuring high stability in diverse operating conditions.

Applications

The versatility of the OP37GSZ makes it suitable for a variety of applications, including:

• Precision amplifiers in data acquisition systems
• Active filters and integrators
• Instrumentation amplifiers
• Professional audio equipment
• Medical imaging systems
• Test and measurement equipment

Technical Specifications

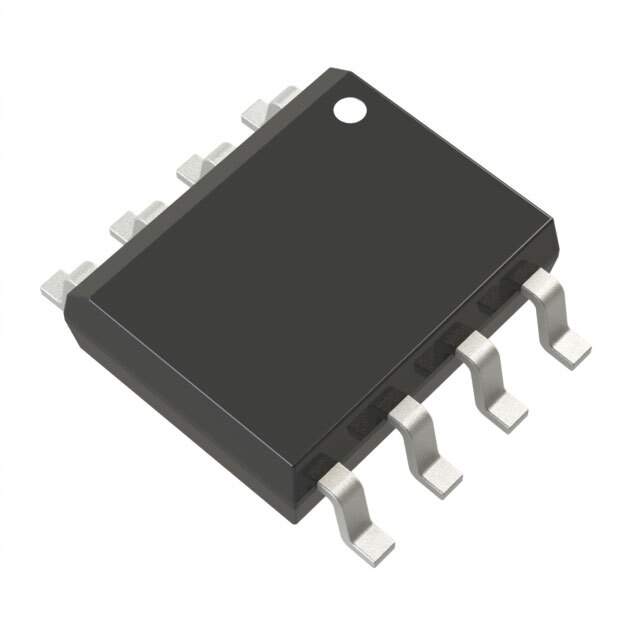

The OP37GSZ operates within a supply voltage range of ±5 V to ±15 V and features a dual-supply voltage capability. It is available in an 8-lead SOIC package, ensuring compatibility with standard surface-mount PCB assembly processes. The operational amplifier also meets the stringent requirements of the RoHS directive, making it an environmentally friendly choice for electronic designs.

With its exceptional performance and robust design, the OP37GSZ from Analog Devices Inc. is an excellent choice for engineers and designers looking to enhance the precision and efficiency of their electronic systems.
