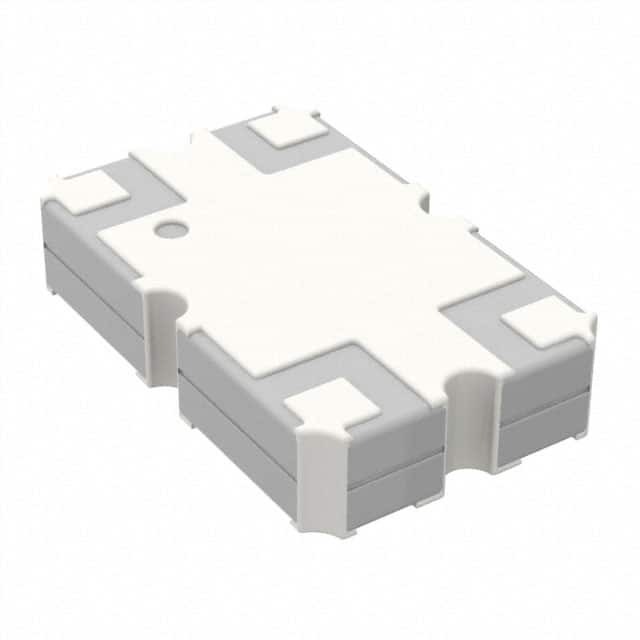

X3C19F1-03S Anaren
Same model may have multiple batches, images only for reference.

X3C19F1-03S

Part No X3C19F1-03S
Manufacturer Anaren
Catalog RF Directional Coupler
Description RF DIR COUPLER 1.7GHZ-2.3GHZ SMD  /  RF Directional Coupler General Purpose 1.7GHz ~ 2.3GHz 25W 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Directional Coupler
Mfr TTM Technologies, Inc.
Series Xinger III®
Package Tape & Reel
Coupler Type Standard
Frequency 1.7GHz ~ 2.3GHz
Applications General Purpose
Insertion Loss 0.25dB
Power - Max 25W
Isolation 26dB
Package / Case 4-SMD, No Lead
Base Product Number X3C19F1
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8517.79.0000
Other Names 1173-1186-2,X3C19F1-03SR,1173-1186-1,X3C19F1-03S-ND,X3C19F1-03S REEL 3DB,1173-1186-6
Standard Package 4,000
Win Source Part Number 1031902-X3C19F1-03S
Ultra Librarian 3D Model Ultra Librarian X3C19F1-03S CAD Model

Description

The TTM Technologies Xinger III RF Directional Coupler is a high-quality electronic component that can be used in various RF/IF and RFID applications.

  • Frequency Range: 1.7GHz to 2.3GHz
  • Insertion Loss: Standard 0.25dB
  • Isolation: 26dB
  • Package: 4-SMD, no lead
  • Standard Package: 4,000
  • MSL Level: 2 (1 year)
  • HTSUS: 8517.79.0000
