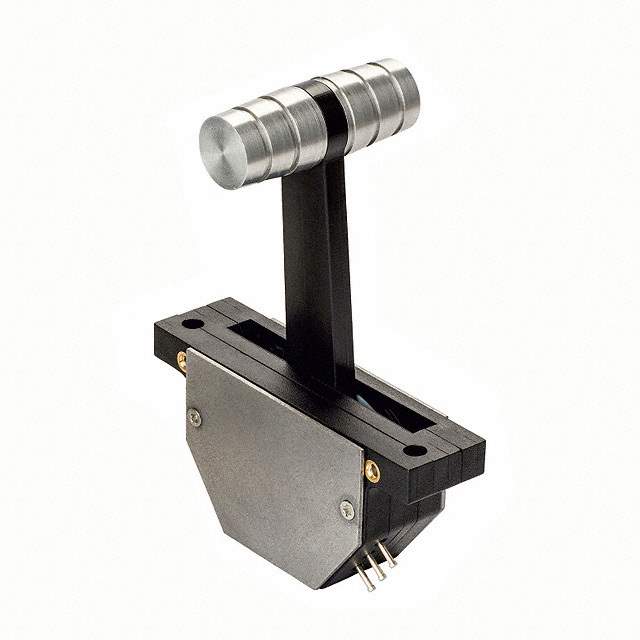

SN101RS Real Image
Same model may have multiple batches, images only for reference.

SN101RS

Part No SN101RS
Manufacturer Apem Inc.
Catalog Navigation Switches, Joystick
Description SWITCH JOYSTICK T-HANDLE HALL / Joystick, 1 - Axis Analog (Hall Effect) Output
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Navigation Switches, Joystick
Mfr APEM Inc.
Series SN
Package Bulk
Type Joystick, 1 - Axis
Actuator Type T-Handle
Switch Function 2-Way Directional
Output Analog (Hall Effect)
Voltage - Supply 5VDC
Mounting Type Panel Mount
Termination Style Solder Turret
Temperature Range - Operating -20°C ~ 70°C
Panel Cutout Dimensions Rectangular - 56.00mm x 7.00mm
Mechanical Life 1,000,000 Cycles
Operating Force 50gf
Other Names 1040-1159
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8537.10.9170
Win Source Part Number 1233405-SN101RS
Ultra Librarian 3D Model Ultra Librarian SN101RS CAD Model

Description

The SN101RS is a joystick navigation switch from APEM Inc.

  • Actuator Type: T-handle
  • Switch Function: 2-way directional
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 50gf
  • Mounting: Panel Mountable
  • Panel Cutout Dimension: 56.00mm x 7.00mm
  • Output: Analog (Hall Effect)
  • Voltage Supply: 5VDC
