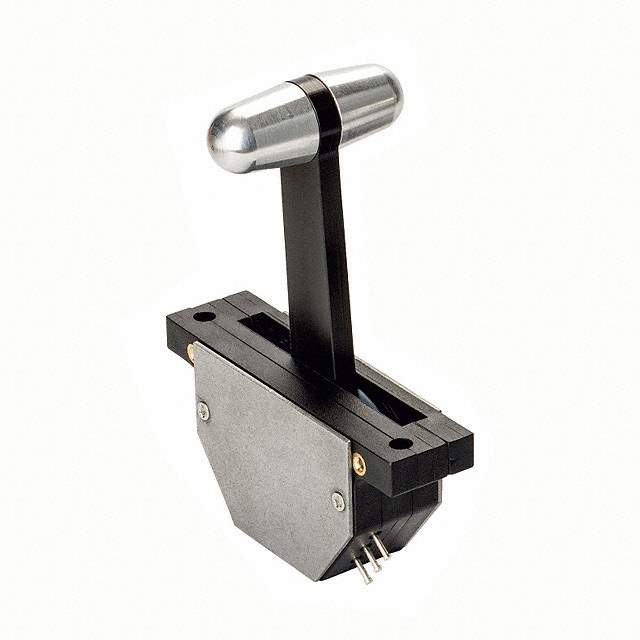

SN101SN Real Image
Same model may have multiple batches, images only for reference.

SN101SN

Part No SN101SN
Manufacturer Apem Inc.
Catalog Navigation Switches, Joystick
Description SWITCH JOYSTICK T-HANDLE HALL  /  Joystick, 1 - Axis Analog (Hall Effect) Output
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Navigation Switches, Joystick
Mfr APEM Inc.
Series SN
Package Bulk
Type Joystick, 1 - Axis
Actuator Type T-Handle
Switch Function 2-Way Directional
Output Analog (Hall Effect)
Voltage - Supply 5VDC
Mounting Type Panel Mount
Termination Style Solder Turret
Temperature Range - Operating -20°C ~ 70°C
Panel Cutout Dimensions Rectangular - 56.00mm x 7.00mm
Mechanical Life 1,000,000 Cycles
Operating Force 50gf
Other Names 2266-SN101SN,1040-1155
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8537.10.9170
Win Source Part Number 1233406-SN101SN
Ultra Librarian 3D Model Ultra Librarian SN101SN CAD Model

Description

The SN101SN is a 1-axis joystick from the SN series by APEM Inc.

  • Termination Style: Solder Turret
  • Mounting: Panel Mounted
  • Actuator: T-handle
  • Operating Force: 50gf
  • Output: Analog (Hall Effect)
  • Switch Function: 2-Way Directional
  • Voltage Rating: 5VDC
  • Mechanical Life: 1,000,000 cycles
  • Standard Package: 1
  • Temperature Range: -20°C to 70°C
