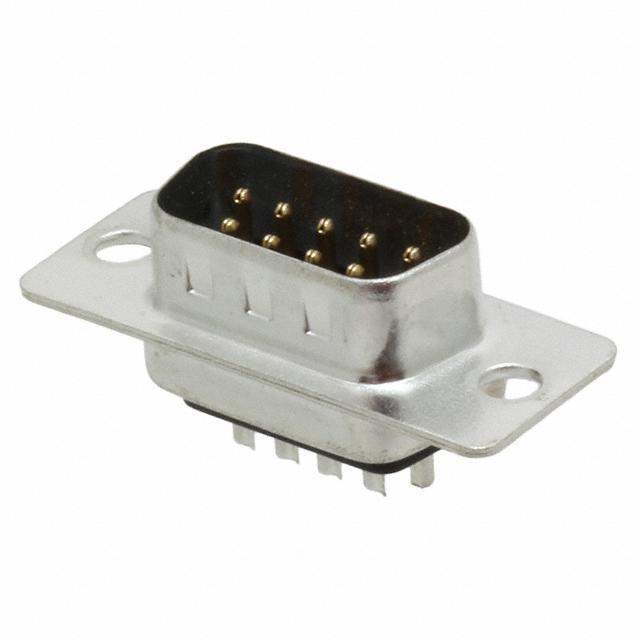

A-DS 09 LL/Z Assmann WSW Components
Same model may have multiple batches, images only for reference.

A-DS 09 LL/Z

Part No A-DS 09 LL/Z
Manufacturer Assmann WSW Components
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS SLDR CUP
Datasheet
A-DS 09 LL/Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201245-A-DS 09 LL/Z
Manufacturer Assmann WSW Components
Category Connectors, Interconnects -D-Sub, D-Shaped Connectors -D-Sub Connector Assemblies
Package Tray
Product Status Active
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Contact Type Signal
Ultra Librarian 3D Model Ultra Librarian A-DS 09 LL/Z CAD Model

Description

The D-Sub connector assembly from Assmann WSW Components is a reliable and durable option for your connectivity needs.

  • Manufacturer: Assmann WSW Components
  • Number of Positions: 9
  • Connector Type: Plug, Male Pins
  • Contact Type: Signal
  • Number of Rows: 2
  • Mounting Type: Free Hanging (In-Line)
  • Product Status: Active
