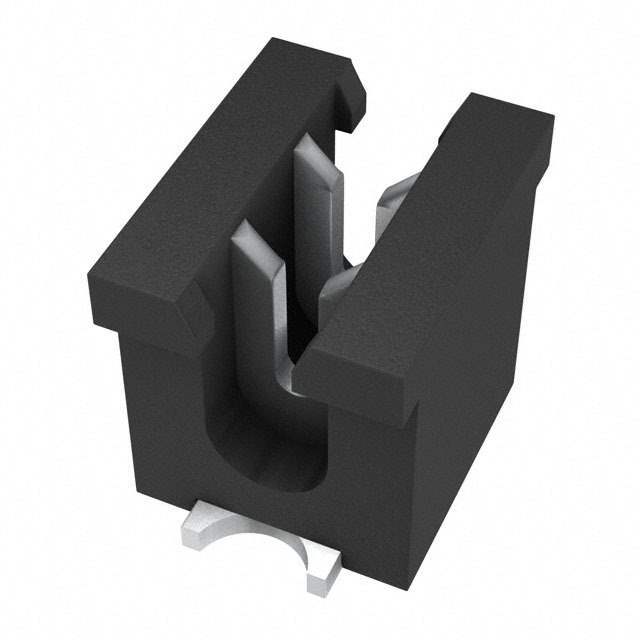

009176001001006 KYOCERA AVX
Same model may have multiple batches, images only for reference.

009176001001006

Part No 009176001001006
Manufacturer AVX Corp/Kyocera Corp
Catalog Solid State Lighting Connectors
Description CONN SSL IDC CONTACT 18AWG SLDR
Datasheet
009176001001006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Part Status Active
Style Board to Cable/Wire
Connector Type Contact, IDC
Number of Positions 1
Mounting Type Surface Mount
Termination Solder
Features Cap (Cover)
Contact Finish Tin
Contact Material Phosphor Bronze
Ultra Librarian 3D Model Ultra Librarian 009176001001006 CAD Model

Description

APPLICATIONS

• Connecting discrete wire components directly to the PCB

• Bringing power and signals onto a PCB

• Daisy chaining PCB’s together to create a continuous string of boards

• Application Notes: refer to 201-01-124
