Same model may have multiple batches, images only for reference.

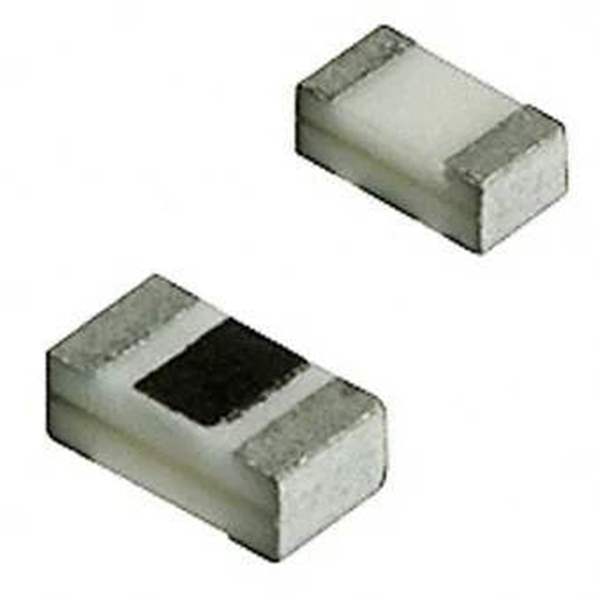

08055K220JBTTR Real Image
Same model may have multiple batches, images only for reference.

08055K220JBTTR

Part No 08055K220JBTTR
Manufacturer AVX Corp/Kyocera Corp
Catalog Thin Film Capacitors
Description CAP THIN FILM 22PF 50V 0805
Datasheet
08055K220JBTTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Thin Film Capacitors
Mfr AVX Corp/Kyocera Corp
Series Accu-P®
Package Tape & Reel
Product Status Active
Capacitance 22 pF
Tolerance ±5%
Voltage - Rated 50 V
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Temperature Range - Operating -55°C ~ 125°C
Features RF, High Q, Low Loss
Size / Dimension 0.079" L x 0.050" W (2.00mm x 1.27mm)
Height - Seated (Max) 0.044" (1.13mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 853404-08055K220JBTTR
Ultra Librarian 3D Model Ultra Librarian 08055K220JBTTR CAD Model

Description

The AVX Corp/Kyocera Corp 853404-08055K220JBTTR is a thin film capacitor designed for high-frequency applications.

  • Capacitance: 22 pF
  • Voltage Rating: 50 V
  • Package Size: 0805 (2012 Metric)
  • Mounting Technology: Surface Mount
  • Operating Temperature: -55°C to 125°C
  • Standard Package: 3,000 pieces
