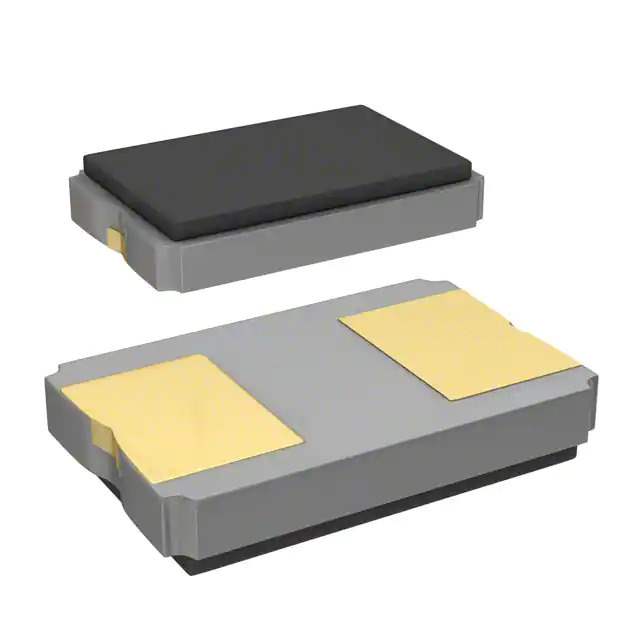

CX5032GB08000H0HPQZ1 Real Image
Same model may have multiple batches, images only for reference.

CX5032GB08000H0HPQZ1

Part No CX5032GB08000H0HPQZ1
Manufacturer AVX Corp/Kyocera Corp
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 12PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr AVX Corp/Kyocera Corp
Series CX5032GB, Kyocera
Package Tape & Reel
Product Status Obsolete
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 300 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 851158-CX5032GB08000H0HPQZ1
Ultra Librarian 3D Model Ultra Librarian CX5032GB08000H0HPQZ1 CAD Model

Description

The 851158-CX5032GB08000H0HPQZ1 is a crystal oscillator manufactured by Kyocera.

  • Series: CX5032GB
  • Frequency: 8 MHz
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height - Seated (Max): 0.047" (1.20mm)
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • ESR (Equivalent Series Resistance): 300 Ohms
  • Load Capacitance: 12pF
  • Operating Mode: Fundamental
  • Vf - Forward Voltage: 1.1V
  • Packaging: Tape & Reel (TR)
  • Standard Package: 1,000
  • Operating Temperature: -40°C ~ 85°C
  • Lifecycle Status: Obsolete
