Same model may have multiple batches, images only for reference.

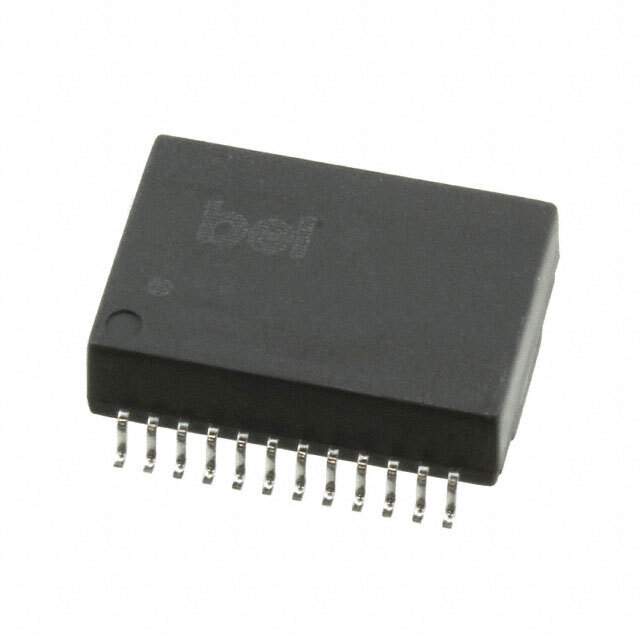

S558-5500-JV Real Image
Same model may have multiple batches, images only for reference.

S558-5500-JV

Part No S558-5500-JV
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description XFRMR LAN 5G 60W POE SMD / 180µH LAN 5G Base-T, Power over Ethernet (PoE) Pulse Transformer 1CT:1CT Surface Mount
Datasheet
S558-5500-JV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Transformer Type LAN 5G Base-T, Power over Ethernet (PoE)
Inductance 180µH
Mounting SMD (SMT)
Dimension 0.690" L x 0.600" W (17.53mm x 15.24mm)
Height - Seated (Max) 0.225" (5.71mm)
Temperature Range - Operating -40°C ~ 85°C
Other Names 507-2171-6,507-2171-1,507-2171-2
Standard Package 380
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232778-S558-5500-JV
Ultra Librarian 3D Model Ultra Librarian S558-5500-JV CAD Model

Description

The Bel Fuse Inc. S558-5500-JV is a LAN 5G Base-T Pulse Transformer that is designed for use in Ethernet applications.

  • Package: SMD
  • Inductance: 180μH
  • Temperature Range: -40°C to 85°C
