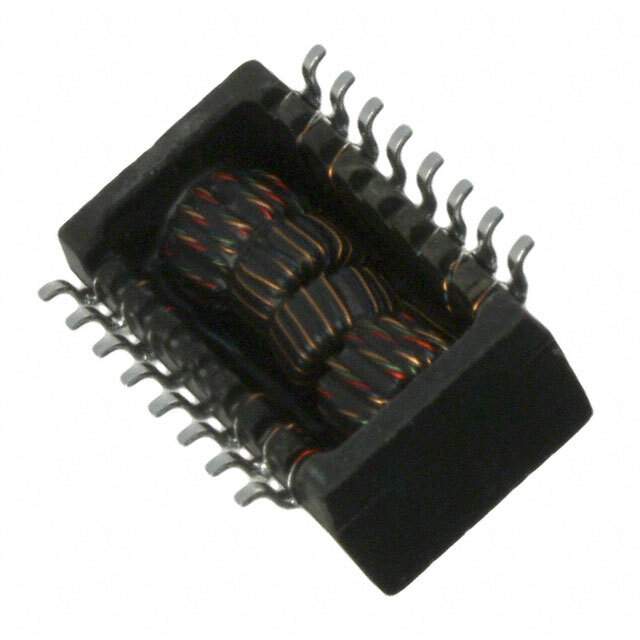

S558-5999-J1-F Real Image
Same model may have multiple batches, images only for reference.

S558-5999-J1-F

Part No S558-5999-J1-F
Manufacturer Bel Fuse Inc.
Catalog Pulse Transformers
Description MODULE XFRMR LAN 10/100B-TX SMD  /  350µH LAN 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
S558-5999-J1-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bel Fuse Inc.
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.485" L x 0.285" W (12.32mm x 7.24mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names S5585999J1-F,S5585999J1F,507-1467-6,507-1467-1,507-1467-2
Standard Package 900
Win Source Part Number 1010756-S558-5999-J1-F
Ultra Librarian 3D Model Ultra Librarian S558-5999-J1-F CAD Model

Description

The Bel Fuse Inc. Pulse Transformer is a high-quality electronic component that is designed for use in a wide range of applications.

  • Package Series: Tape & Reel
  • Mounting Style: Surface Mount
  • Category: Transformers>Pulse Transformers
  • ECCN: EAR99
  • MSL Level: 2 (1 Year)
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
