Same model may have multiple batches, images only for reference.

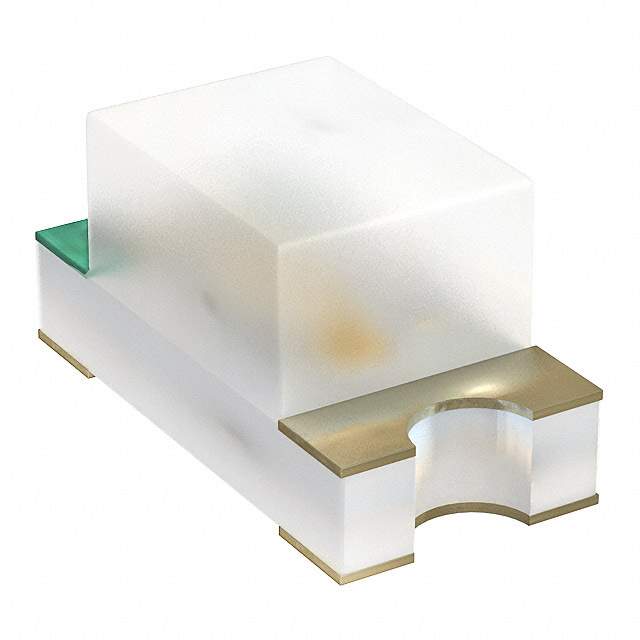

SM0603SRC Real Image
Same model may have multiple batches, images only for reference.

SM0603SRC

Part No SM0603SRC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED RED CLEAR 0603 SMD  /  Red 640nm LED Indication - Discrete 1.85V 0603 (1608 Metric)
Datasheet
SM0603SRC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242248-SM0603SRC
Standard Package 4,000
Base Product Number SM0603
Height (Max) 0.80mm
Dimension 1.60mm L x 0.80mm W
Supplier Device Package 0603
Package / Case 0603 (1608 Metric)
Wavelength - Peak 660nm
Wavelength - Dominant 640nm
Mounting SMD (SMT)
Viewing Angle 130°
Current - Test 20mA
Voltage - Forward (Vf) (Typ) 1.85V
Lens Size 1.00mm x 0.80mm
Lens Style Rectangle with Flat Top
Millicandela Rating 28mcd
Lens Transparency Clear
Lens Color Colorless
Configuration Standard
Color Red
Package Tape & Reel (TR)
Mfr Bivar Inc.
Category Optoelectronics>LED Indication - Discrete
Ultra Librarian 3D Model Ultra Librarian SM0603SRC CAD Model

Description

The Bivar Inc. SM0603SRC is an LED indication - discrete electronic component produced by.

  • Color: Red
  • Viewing Angle: 130 degrees
  • Millicandela Rating: 28mcd
  • Voltage-Forward: 1.85V
  • Wavelength-Dominant: 640nm
  • Package/Case: 0603 (1608 Metric)
  • Height: 0.80mm
