Same model may have multiple batches, images only for reference.

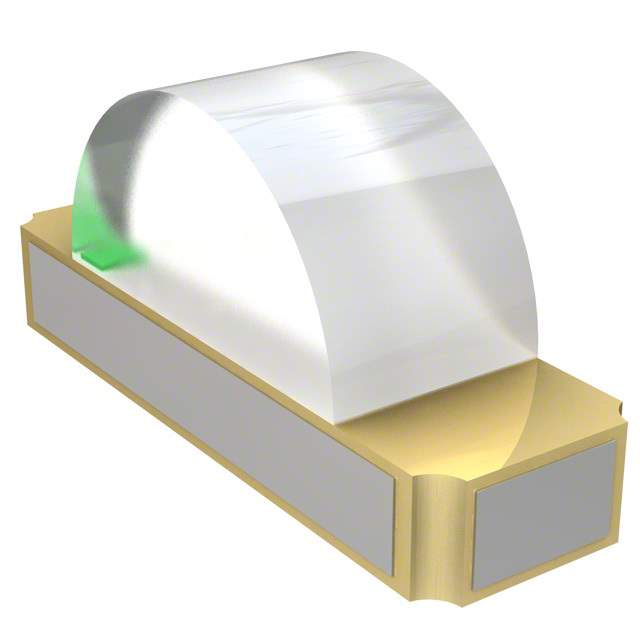

SM1204UGC Real Image
Same model may have multiple batches, images only for reference.

SM1204UGC

Part No SM1204UGC
Manufacturer Bivar Inc.
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 1204 R/A SMD / Green 565nm LED Indication - Discrete 2.1V 1204 (3210 Metric)
Datasheet
SM1204UGC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Bivar Inc.
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 28.5mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 110°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 565nm
Wavelength - Peak 568nm
Package / Case 1204 (3210 Metric)
Supplier Device Package 1204
Dimension 3.20mm L x 1.00mm W
Height (Max) 1.00mm
Base Product Number SM1204
Other Names 492-1238-1,492-1238-2,492-1238-6
Standard Package 3,000
MSL Level 4 (72 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242329-SM1204UGC
Ultra Librarian 3D Model Ultra Librarian SM1204UGC CAD Model

Description

The SM1204UGC LED indication device is a green LED package with a tape & reel package type.

  • Features: No specific features
  • Standard Package: 3,000
  • Viewing Angle: 110°
  • Millicandela Rating: 28.5mcd
  • Voltage Forward (Vf): 2.1V
  • Current Test: 20mA
  • Wavelength-Dominant: 565nm
  • Wavelength-Peak: 568nm
  • Height: 1.00mm
  • Mounting: Surface mount and right angle mounting
  • Package/Case: 1204 (3210 metric)
  • Supplier Device Package: 1204
  • Dimension: 3.20mm L x 1.00mm W
  • Lens Style: Rectangle with domed top
  • Lens Size: 2.00mm x 1.00mm
  • REACH: Unaffected
  • ECCN: EAR99
