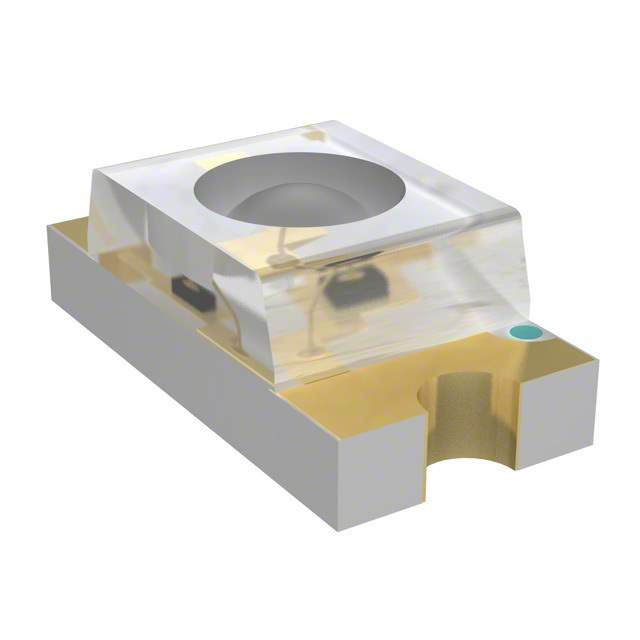

Same model may have multiple batches, images only for reference.

SM1206URC

Name: SM1206URC
Brand: Bivar Inc.
SKU: 1242246
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	SM1206URC
Manufacturer	Bivar Inc.
Catalog	LED Indication - Discrete
Description	LED RED CLEAR 1206 SMD / Red 640nm LED Indication - Discrete 2.1V 1206 (3216 Metric)
Datasheet	SM1206URC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Indication - Discrete
Mfr	Bivar Inc.
Package	Tape & Reel (TR)
Color	Red
Configuration	Standard
Lens Color	Colorless
Lens Transparency	Clear
Millicandela Rating	55mcd
Lens Style	Rectangle with Flat Top
Lens Size	2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ)	2.1V
Current - Test	20mA
Viewing Angle	140°
Mounting	SMD (SMT)
Wavelength - Dominant	640nm
Wavelength - Peak	655nm
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Dimension	3.20mm L x 1.60mm W
Height (Max)	1.10mm
Base Product Number	SM1206
Standard Package	3,000
MSL Level	4 (72 Hours)
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1242246-SM1206URC
Ultra Librarian 3D Model	Ultra Librarian SM1206URC CAD Model

Alternative Products

Description

The Bivar Inc. SM1206URC is a standard configuration red LED.

Package: 1206 (3216 Metric)
Shape: Rectangular with a flat top lens
Lens Color: Colorless lens
Lens Transparency: Clear lens transparency
Viewing Angle: 140 degrees
Millicandela Rating: 55mcd
Voltage Rating: 2.1V
Current: 20mA
Wavelength @ Peak: 655nm
Wavelength @ Dominant: 640nm
Package: Tape and reel
Standard Package: 3,000
Dimension: 3.20mm L x 1.60mm W
Series: SM1206 series
