Same model may have multiple batches, images only for reference.

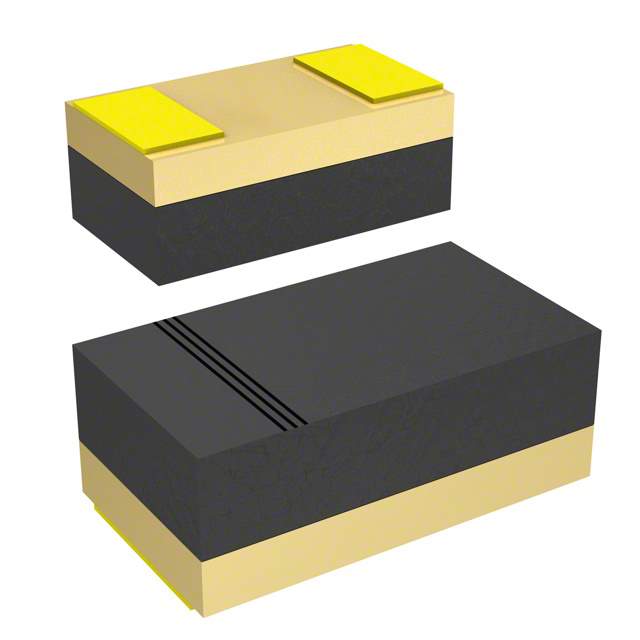

CD0603-Z5V1 Real Image
Same model may have multiple batches, images only for reference.

CD0603-Z5V1

Part No CD0603-Z5V1
Manufacturer Bourns Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.1V 150MW 0603 / Zener Diode 5.1 V 150 mW ±5% Surface Mount 0603
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Bourns Inc.
Package Tape & Reel
Product Status Obsolete
Voltage - Zener (Nom) (Vz) 5.1 V
Tolerance ±5%
Power - Max 150 mW
Impedance (Max) (Zzt) 60 Ohms
Current - Reverse Leakage @ Vr 100 nA @ 800 mV
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Base Product Number CD0603
Standard Package 4,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1340282-CD0603-Z5V1
Ultra Librarian 3D Model Ultra Librarian CD0603-Z5V1 CAD Model

Description

This Bourns Inc. product is a part of the CD0603 series and is a single Zener diode.

  • Series: CD0603
  • Voltage - Zener (Nom) (Vz): 5.1 V
  • Impedance (Max) (Zzt): 60 Ohms
  • Operating Temperature: -55°C ~ 125°C
  • Tolerance: ±5%
  • Power - Max: 150 mW
  • Current - Reverse Leakage @ Vr: 100 nA @ 800 mV
  • Mounting Type: Surface Mount
  • Package: 0603 (1608 Metric)
  • Base Product Number: CD0603
  • Status: Obsolete
