Same model may have multiple batches, images only for reference.

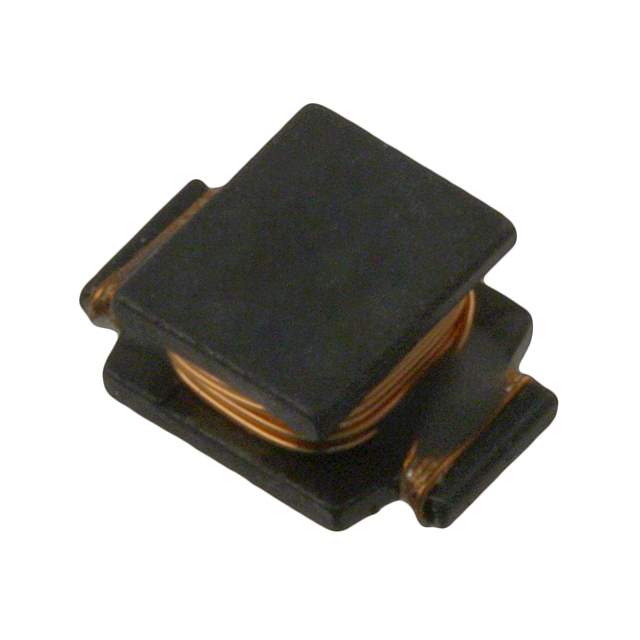

SDR0703-4R7M Real Image
Same model may have multiple batches, images only for reference.

SDR0703-4R7M

Part No SDR0703-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR0703-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0703
Package Tape & Reel (TR)
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 2.1A
Shielding Unshielded
DC Resistance (DCR) 100mOhm Max
Q @ Freq 20 @ 7.96MHz
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.256" L x 0.177" W (6.50mm x 4.50mm)
Height - Seated (Max) 0.106" (2.70mm)
Base Product Number SDR0703
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274721-SDR0703-4R7M
Ultra Librarian 3D Model Ultra Librarian SDR0703-4R7M CAD Model

Description

The Bourns Inc. SDR0703 series of fixed inductors are designed for use in a wide range of applications.

  • Construction: Drum core and wirewound
  • Design: Unshielded
  • Package: Tape and reel
  • Inductance: 4.7 μH
  • Tolerance: ±20%
  • DC Resistance (DCR): 100 mΩ max
  • Current Rating: 1.5 A
  • Q @ Freq: 20 @ 7.96 MHz
  • Frequency Self-Resonant: 60 MHz
  • Temperature Range: -40°C to 125°C
  • Package/Case: Non-standard
