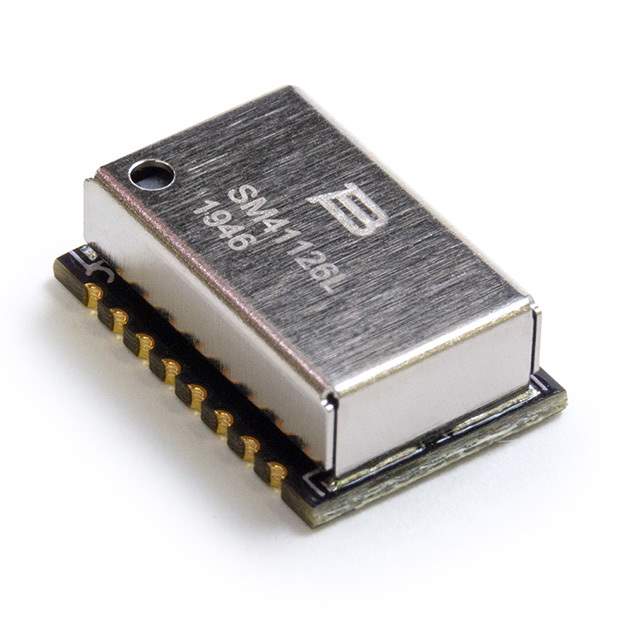

SM41126EL Real Image
Same model may have multiple batches, images only for reference.

SM41126EL

Part No SM41126EL
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description CHIP LAN XFMR MODULE,10/100 TX,W / 350µH LAN 10/100 Base-T Pulse Transformer Surface Mount
Datasheet
SM41126EL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Package Tape & Reel
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting SMD (SMT)
Dimension 0.500" L x 0.341" W (12.70mm x 8.66mm)
Height - Seated (Max) 0.157" (3.99mm)
Temperature Range - Operating -40°C ~ 85°C
Other Names 118-SM41126ELCT,118-SM41126ELTR,118-SM41126ELDKR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232764-SM41126EL
Ultra Librarian 3D Model Ultra Librarian SM41126EL CAD Model

Description

The Bourns Inc. SM41126EL transformer is a high-performance device used in pulse transformers.

  • Package: Tape & reel
  • ECCN: EAR99
  • Supply and Demand: Limited supply and demand product
  • Standard Package: 800
  • MSL Level: 1 (Unlimited)
  • ET (Volt-Time): -
