Same model may have multiple batches, images only for reference.

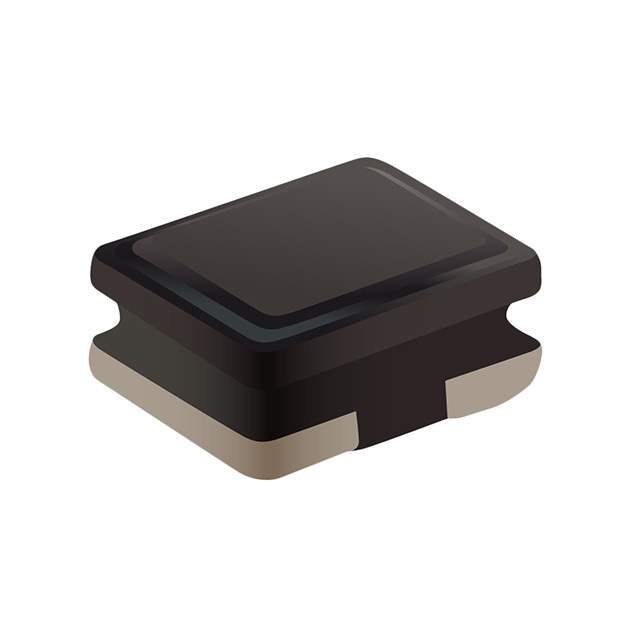

SRN2009T-R47M Real Image
Same model may have multiple batches, images only for reference.

SRN2009T-R47M

Part No SRN2009T-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRN2009T-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRN2009T
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 2 A
Current - Saturation (Isat) 2A
Shielding Semi-Shielded
DC Resistance (DCR) 38mOhm
Q @ Freq 25 @ 1MHz
Frequency - Self Resonant 300MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.037" (0.95mm)
Base Product Number SRN2009T
Other Names SRN2009T-R47MDKR,SRN2009T-R47MCT,SRN2009T-R47MTR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1274440-SRN2009T-R47M
Ultra Librarian 3D Model Ultra Librarian SRN2009T-R47M CAD Model

Description

The Bourns Inc. 1274440-SRN2009T-R47M is a fixed inductor component with a package of tape & reel and SMD (SMT) mounting.

  • Inductance: 470 nH
  • Current Rating: 2 A
  • Supply and Demand Status: balanced
  • Standard Package: 2000
  • ECCN: EAR99
  • REACH: unaffected
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Estimated Temperature Range: -40°C to 125°C
