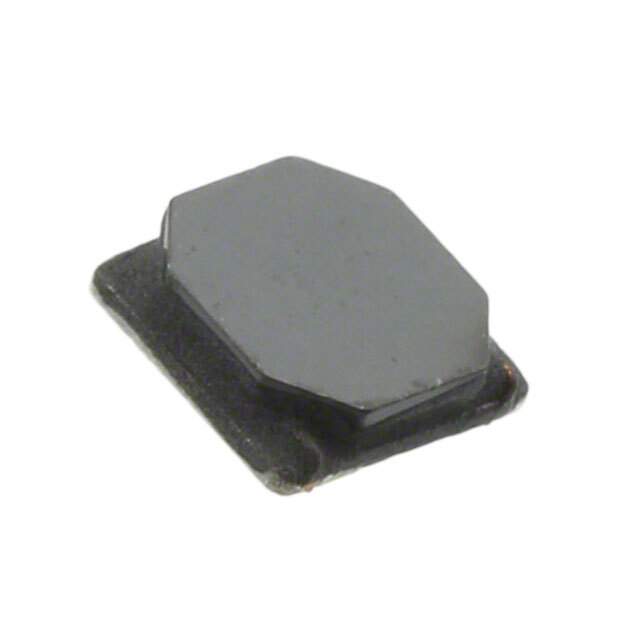

SRN4012T-220M Real Image
Same model may have multiple batches, images only for reference.

SRN4012T-220M

Part No SRN4012T-220M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 620MA 400MOHM SMD / 22 µH Semi-Shielded Drum Core, Wirewound Inductor 620 mA 400mOhm Nonstandard
Datasheet
SRN4012T-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 620 mA
Current - Saturation (Isat) 500mA
Shielding Semi-Shielded
DC Resistance (DCR) 400mOhm
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 18MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRN4012T
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number SRN4012T-220MCT,SRN4012T-220MTR,SRN4012T-220MDKR
Standard Package 4,500
Win Source Part Number 1327786-SRN4012T-220M
Ultra Librarian 3D Model Ultra Librarian SRN4012T-220M CAD Model

Description

The Bourns Inc. SRN4012T-220M is a drum core wirewound inductor with a semi-shielded design.

  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Seated Height: 0.047" (1.20mm)
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 400mOhm
  • Current Rating: 620 mA
  • Saturation Current (Isat): 500mA
  • Q @ Freq: 10 @ 100kHz
  • Self-Resonant Frequency: 18MHz
  • Operating Temperature: -40°C to 125°C
  • Mounting: Surface Mountable
  • Case/Package: Non-Standard
  • Standard Package: 4,500
  • REACH: Unaffected
  • ROHS3 Compliant: Yes
