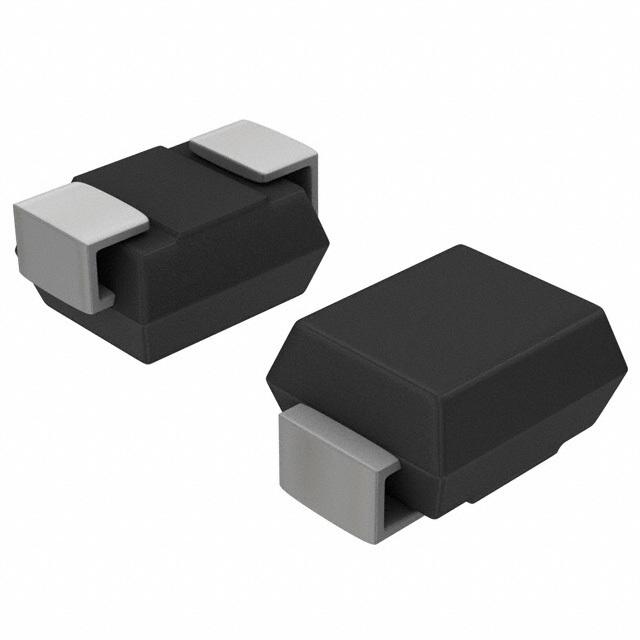

Same model may have multiple batches, images only for reference.
CD214B-B130LF Bourns Inc.
Same model may have multiple batches, images only for reference.

CD214B-B130LF

Part No CD214B-B130LF
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 1A DO214AA
Datasheet
CD214B-B130LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 500mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 30V
Capacitance @ Vr, F 110pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AA (SMB)
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 1028125-CD214B-B130LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CD214B-B130LF CAD Model

Description

The Bourns Inc. CD214B-B130LF is an active SMD (SMT) electronic component that is categorized under Discrete Semiconductor Products.

  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Operating Temperature: -55°C to 125°C
  • Supply and Demand Status: balanced
