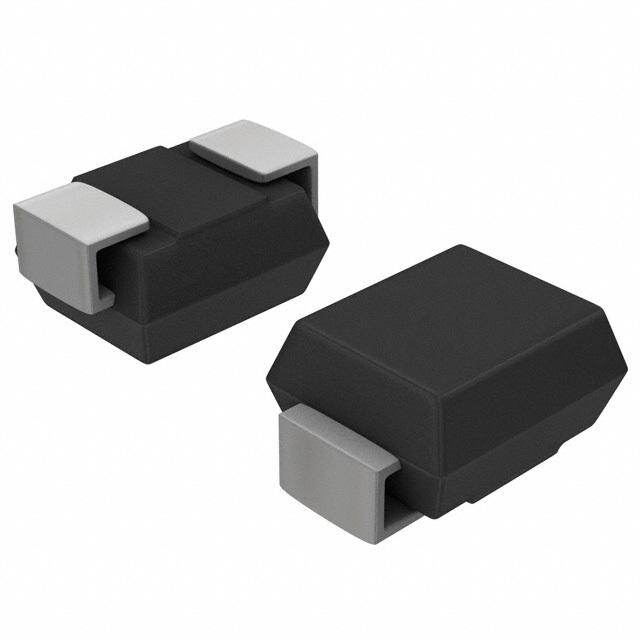

CD214B-B150LF Bourns Inc.
Same model may have multiple batches, images only for reference.

CD214B-B150LF

Part No CD214B-B150LF
Manufacturer Bourns Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 50V 1A SMBJ
Datasheet
CD214B-B150LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 700mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 50V
Capacitance @ Vr, F 110pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package SMBJ (DO-214AA)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1028127-CD214B-B150LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CD214B-B150LF CAD Model

Description

Bourns Inc. presents a high-quality Schottky diode that is perfect for discrete semiconductor products.

  • Voltage DC Reverse (max): 50V
  • Average Rectified Current: 1A
  • Forward Voltage (max): 700mV @ 1A
  • Packaging: reel- TR
  • Mounting Type: SMD (SMT)
  • Reverse Leakage: 500μA @ 50V
  • Capacitance: 110pF @ 4V, 1MHz
  • Product Status: active
