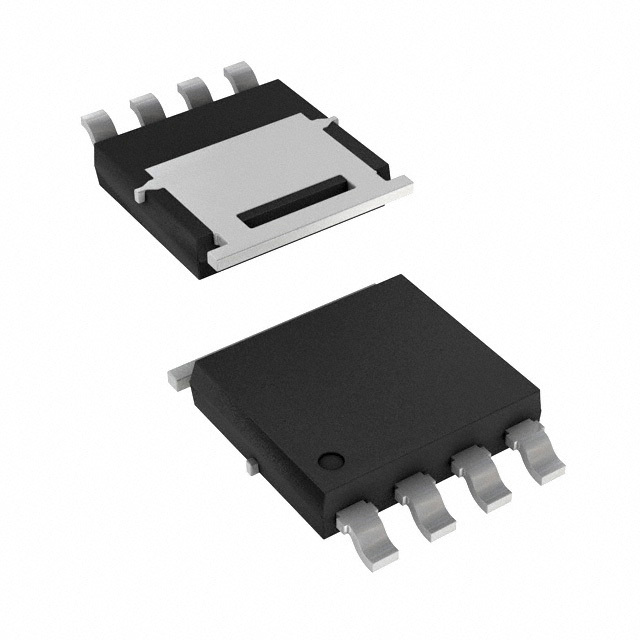

SQJ414EP-T1_GE3

Name: SQJ414EP-T1_GE3
Brand: Vishay
SKU: 1353261
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SQJ414EP-T1_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 30A PPAK SO-8 / N-Channel 30 V 30A (Tc) 45W (Tc) Surface Mount PowerPAK® SO-8
Datasheet	SQJ414EP-T1_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1110 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	45W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerPAK® SO-8
Package / Case	PowerPAK® SO-8
Base Product Number	SQJ414
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1353261-SQJ414EP-T1_GE3
Ultra Librarian 3D Model	Ultra Librarian SQJ414EP-T1_GE3 CAD Model

Alternative Products

Description

The SQJ414EP-T1_GE3 is a N-Channel MOSFET (Metal Oxide) transistor from the Automotive, AEC-Q101, TrenchFET® series from Vishay Siliconix.

Package: PowerPAK® SO-8
Drain to Source Voltage (Vdss): 30V
Continuous Drain Current (Id): 30A @ 25°C
Maximum Gate Voltage (Vgs): ±20V
Gate Charge (Qg): 25nC @ 10V
On-Resistance (Rds On): 12mOhm @ 4.5A and 10V
Power Dissipation: 45W
Temperature Range: -55°C to 175°C
