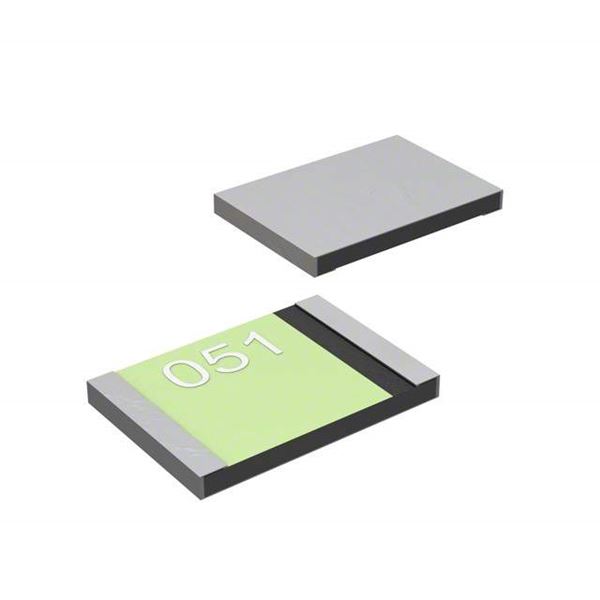

MF-MSMD150-2 Bourns Inc.
Same model may have multiple batches, images only for reference.

MF-MSMD150-2

Part No MF-MSMD150-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE RESETTABLE 1.50A HOLD SMD
Datasheet
MF-MSMD150-2 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Polymeric
Voltage - Max 6V
Current - Max 100A
Current - Hold (Ih) (Max) 1.5A
Current - Trip (It) 3A
Time to Trip 500ms
Resistance - Initial (Ri) (Min) 30 mOhm
Resistance - Post Trip (R1) (Max) 120 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.179" L x 0.015" W (4.55mm x 0.39mm)
Thickness (Max) 0.134" (3.41mm)
Approvals CSA, TUV, UR
Win Source Part Number 098198-MF-MSMD150-2
Ultra Librarian 3D Model Ultra Librarian MF-MSMD150-2 CAD Model

Description

The Bourns Inc. 098198-MF-MSMD150-2 is a polymeric circuit protection device with a voltage of 6V and a current of 100A.

  • Current Hold (Ih) (max): 1.5A
  • Current Trip (It): 3A
  • Time to Trip: 500ms
  • Thickness (max): 0.134" (3.41mm)
  • Resistance - Initial (Ri) (min): 30 mOhm
  • Resistance - Post trip (R1) (max): 120 mOhm
  • Resistance - 25°C (typ): -
  • Mounting: surface mountable
  • Packaging: reel
  • Temperature Range: -40°C to 85°C
