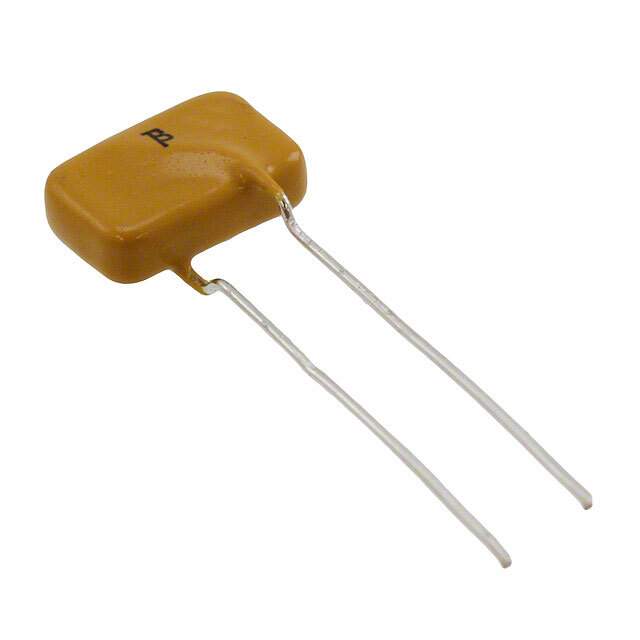

MF-R016/600-A-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R016/600-A-2

Part No MF-R016/600-A-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R016/600-A-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 250V (600V Int)
Current - Max 3A
Current - Hold (Ih) (Max) 160mA
Current - Trip (It) 320mA
Time to Trip 7s
Resistance - Initial (Ri) (Min) 4 Ohm
Resistance - Post Trip (R1) (Max) 16 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.630" L x 0.236" W (16.00mm x 6.00mm)
Height - Seated (Max) 0.496" (12.60mm)
Lead Spacing 0.197" (5.00mm)
Approvals cURus, TUV
Win Source Part Number 003407-MF-R016/600-A-2
Ultra Librarian 3D Model Ultra Librarian MF-R016/600-A-2 CAD Model

Description

The Bourns Inc. 003407-MF-R016/600-A-2 is a polymeric circuit protection device designed for use in through-hole mounting applications.

  • Maximum Voltage Rating: 250V (600V Int)
  • Maximum Current Rating: 3A
  • Current Hold (Ih): 160mA
  • Current Trip (It): 320mA
  • Time to Trip: 7s
  • Approvals: cURus and TUV
  • Temperature Range: -40°C to 85°C
  • Resistance Initial (Ri): 4 Ohm
  • Resistance Post-Trip (R1): 16 Ohm
  • Packaging: Reel-TR
  • Height Seated (max): 0.496" (12.60mm)
  • Lead Spacing: 0.197" (5.00mm)
