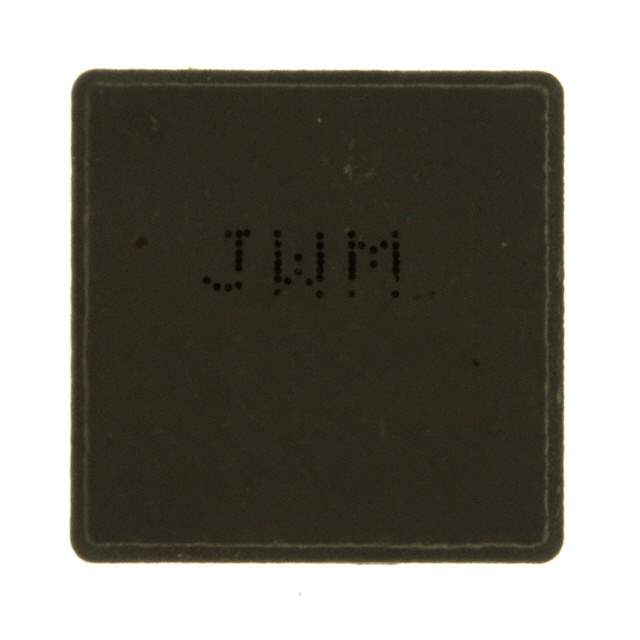

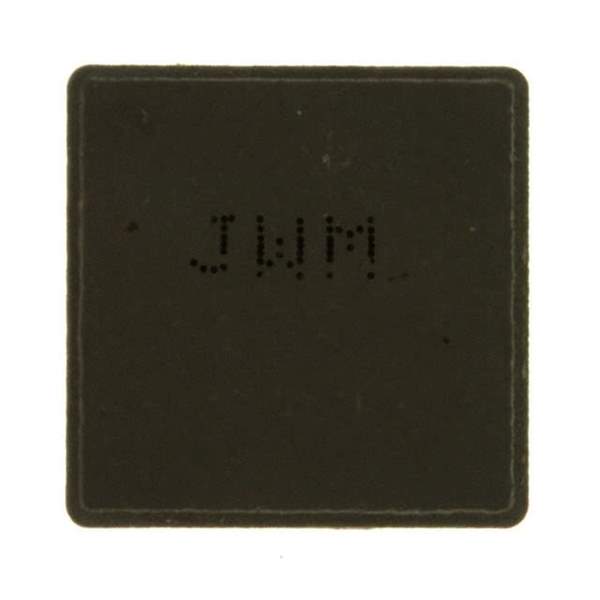

PM12651S-9R0M-RC Real Image
Same model may have multiple batches, images only for reference.

PM12651S-9R0M-RC

Part No PM12651S-9R0M-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 9UH 10A 22.5 MOHM SMD / Shielded Power Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Type Wirewound
Material - Core Iron
Inductance 9μH
Tolerance ±20%
Current Rating (Amps) 10A
Current - Saturation 18A
Shielding Shielded
DC Resistance (DCR) 22.5mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Dimension 0.547" L x 0.531" W (13.90mm x 13.50mm)
Height - Seated (Maximum) 0.232" (5.90mm)
Part Number Series PM12651S
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811255-PM12651S-9R0M-RC
Ultra Librarian 3D Model Ultra Librarian PM12651S-9R0M-RC CAD Model

Description

The Bourns Inc. 811255-PM12651S-9R0M-RC is a shielded wirewound inductor with an inductance of 9μH and a tolerance of ±20%.

  • Maximum DC Resistance: 22.5mOhm
  • Mounting Type: SMD
  • Current Saturation: 18A
  • Series: PM12651S
