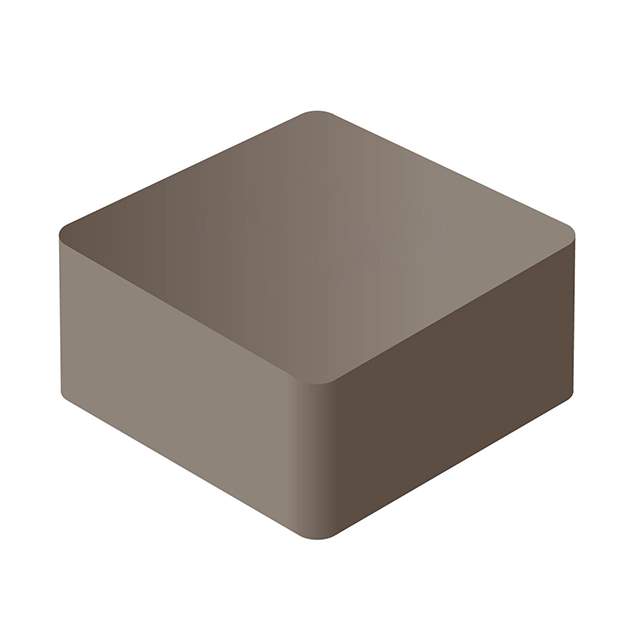

SRP4020FA-2R0M

Part No SRP4020FA-2R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 2UH 8.2A 23.3 MOHM SMD / 2 µH Shielded Drum Core, Wirewound Inductor 8.2 A 23.3mOhm Max Nonstandard
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4020FA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 2 µH
Tolerance ±20%
Current Rating (Amps) 8.2 A
Current - Saturation (Isat) 4A
Shielding Shielded
DC Resistance (DCR) 23.3mOhm Max
Q @ Freq 15 @ 100kHz
Frequency - Self Resonant 40MHz
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.161" L x 0.161" W (4.10mm x 4.10mm)
Height - Seated (Max) 0.083" (2.10mm)
Base Product Number SRP4020FA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP4020FA-2R0MDKR,SRP4020FA-2R0MCT,SRP4020FA-2R0MTR
Standard Package 3,000
Win Source Part Number 1095962-SRP4020FA-2R0M
Ultra Librarian 3D Model Ultra Librarian SRP4020FA-2R0M CAD Model

Description

The Bourns SRP4020FA-2R0M is a fixed inductor designed for surface mount technology (SMT).

  • Shielded: Shielded
  • Package: Nonstandard
  • Inductance: 2 µH
  • Tolerance: ±20%
  • Current Rating: 8.2A
  • DC Resistance: 23.3mΩ max
  • Temperature Range: -55°C to 155°C
  • AEC-Q200: Rated
