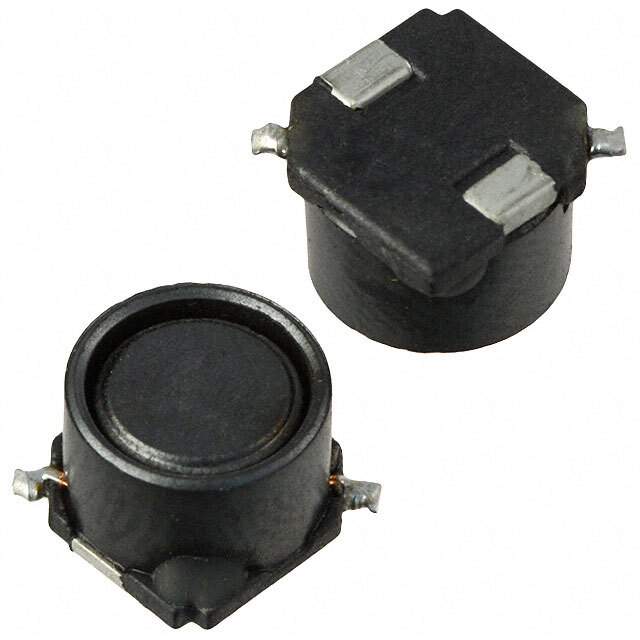

Same model may have multiple batches, images only for reference.

SRR7045-120M

Name: SRR7045-120M
Brand: Bourns Inc.
SKU: 1136303
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SRR7045-120M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 12UH 1.85A 50 MOHM SMD / 12 µH Shielded Drum Core, Wirewound Inductor 1.85 A 50mOhm Max Nonstandard
Datasheet	SRR7045-120M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR7045
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	12 µH
Tolerance	±20%
Current Rating (Amps)	1.85 A
Current - Saturation (Isat)	1.4A
Shielding	Shielded
DC Resistance (DCR)	50mOhm Max
Q @ Freq	27 @ 2.52MHz
Frequency - Self Resonant	23MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max)	0.189" (4.80mm)
Base Product Number	SRR7045
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	1,000
Win Source Part Number	1136303-SRR7045-120M
Ultra Librarian 3D Model	Ultra Librarian SRR7045-120M CAD Model

Alternative Products

Description

The Bourns Inc. SRR7045-120M is a fixed inductor with an inductance of 12 µH and a tolerance of ±20%.

Inductance: 12 µH
Tolerance: ±20%
Core Type: Drum core, wirewound
Package: Tape & reel
Shielding: Shielded
Height: 0.189" (4.80mm)
Standard Package: 1,000
DC Resistance (DCR): 50mOhm Max
Material: Ferrite
Q @ Freq: 27 @ 2.52MHz
Frequency - Self Resonant: 23MHz
Temperature Range: -40°C ~ 125°C
MSL Level: 1 (Unlimited)
ECCN: EAR99
