The HEDS-5140#A11 is a two channel optical incremental encoder manufactured by Broadcom Limited. It's designed to provide precise position and velocity feedback in a variety of motion control applications. This encoder converts rotary motion into digital signals, which can be used to determine the direction, speed, and position of a rotating shaft.

Applications:

• Printers: Provides feedback for print head and paper carriage positioning.
• Plotters: Used for precise control of pen movement.
• Optical Storage Drives: Provides feedback for spindle motor control and head positioning.
• Robotics: Provides accurate feedback on the position of joints and actuators.
• Industrial Automation Equipment: Used in CNC machines, assembly lines, and other automated systems for position and speed control.

Features:

• Two-channel quadrature output: Provides directional information and higher resolution.
• High resolution: Delivers precise position feedback.
• Compact size: Allows for integration into space-constrained applications.
• Easy to mount: Simplifies installation.
• TTL compatible output: Facilitates easy interfacing with digital circuits.

Benefits:

• Precise motion control: Enables accurate positioning and speed regulation.
• Improved system performance: Enhances the accuracy and reliability of automated systems.
• Simplified system design: Reduces the complexity of motion control systems.
• Increased productivity: Enables faster and more efficient operation of automated equipment.
• Reduced maintenance costs: Robust design ensures long-term reliability.

Additional Details:

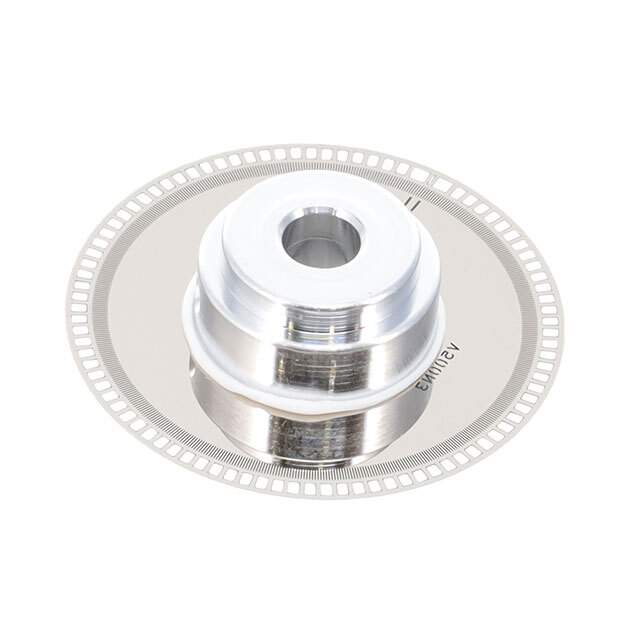

The HEDS-5140#A11 typically consists of an encoder module and a code wheel or strip. As the code wheel rotates, the encoder module generates two quadrature signals (A and B) that are 90 degrees out of phase. The direction of rotation can be determined by examining the phase relationship between these two signals. The resolution of the encoder is determined by the number of lines or slots on the code wheel. The output signals are typically TTL compatible, making them easy to interface with microcontrollers and other digital circuits. Proper alignment and mounting of the encoder are essential for optimal performance. The operating temperature range and supply voltage requirements should be carefully considered during system design. Consult the datasheet for specific details on electrical characteristics, timing parameters, and mechanical specifications.
