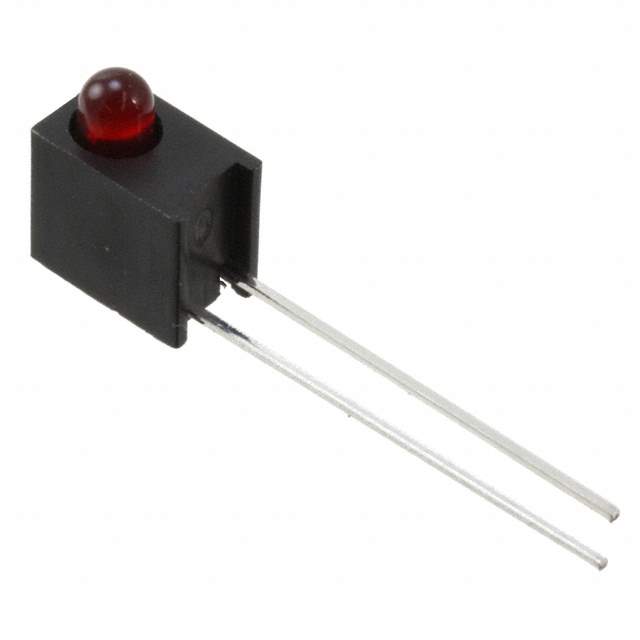

HLMP-1700-B00A1 Real Image
Same model may have multiple batches, images only for reference.

HLMP-1700-B00A1

Part No HLMP-1700-B00A1
Manufacturer Broadcom Limited
Catalog LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Description LED 3MM GAP DIFF RED RA HOUSING / LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 1.7V 2mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle
Datasheet
HLMP-1700-B00A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Mfr Broadcom Limited
Series HLMP-1700
Package Bulk
Color Red
Wavelength - Peak 635nm
Configuration Single
Current 2mA
Millicandela Rating 2.1mcd
Viewing Angle 50°
Lens Type Diffused, Tinted
Lens Style Round with Domed Top
Lens Size 3mm, T-1
Voltage Rating 1.7V
Mounting Type Through Hole, Right Angle
Base Product Number HLMP-1700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-2783,HLMP-1700-B00A1-ND,HLMP1700B00A1
Standard Package 2,000
Win Source Part Number 1005647-HLMP-1700-B00A1
Ultra Librarian 3D Model Ultra Librarian HLMP-1700-B00A1 CAD Model

Description

The HLMP-1700-B00A1 is a red LED from Broadcom Limited. It is a part of the HLMP-1700 series and has a voltage rating of 1.7V.

  • Voltage Rating: 1.7V
  • Millicandela Rating: 2.1mcd
  • Viewing Angle: 50 degrees
  • Lens Type: Diffused and Tinted
  • Mounting Type: Through-Hole and Right Angle
  • Lens Style: Round with a Domed Top
  • Lens Size: 3mm, T-1
  • Ideal for: Use in circuit board indicators, arrays, light bars, and bar graphs
  • Packaging: Bulk
  • Standard Package: 2,000
  • ECCN: EAR99
  • REACH: Unaffected
