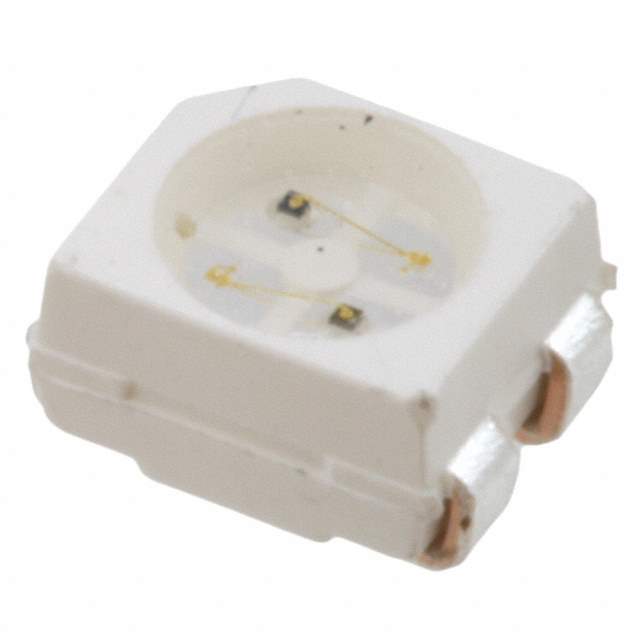

HSMF-A222-A00J1 Real Image
Same model may have multiple batches, images only for reference.

HSMF-A222-A00J1

Part No HSMF-A222-A00J1
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description Surface Mount LED Indicators, PLCC-4 SMT LEDs | LED AMBER/RED CLEAR 4PLCC SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel
Color Amber, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 80mcd Amber, 80mcd Red
Lens Style Round with Flat Top
Lens Size 2.20mm Dia
Voltage - Forward (Vf) 1.9V Amber, 1.9V Red
Current - Test 20mA Amber, 20mA Red
Viewing Angle 120°
Mounting Style SMD
Wavelength - Dominant 590nm Amber, 626nm Red
Wavelength - Peak 592nm Amber, 635nm Red
Manufacturer Package 4-PLCC
Supplier Device Package 4-PLCC
Parts Dimension 3.20mm L x 2.80mm W
Height (Maximum) 2.10mm
Family Part Number HSMF-A2*
Manufacturer Pack Quantity 1
MSL Level 2A (4 Weeks)
Win Source Part Number 731246-HSMF-A222-A00J1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMF-A222-A00J1 CAD Model

Description

The HSMF-A222-A00J1 electronic component, manufactured by Broadcom Limited, is a surface-mounted device (SMD) LED with a colorless lens and a round flat top style.

  • Viewing Angle: 120-degree
  • Lens Size: 2.2mm diameter
  • Colors: amber and red
  • Millicandela Rating: 80mcd for both colors
  • Test Current: 20mA for both colors
  • Wavelength-Dominant: 590nm for amber and 626nm for red
  • Voltage-Forward (Vf): 1.9V for both colors
  • Package: 4-PLCC
  • Height: 2.1mm
  • Supply and Demand Status: balanced
  • Family Part Number: HSMF-A2*
  • Description: The LED is suitable for use in a wide range of optoelectronic applications.
